SC07 Car Charger manual

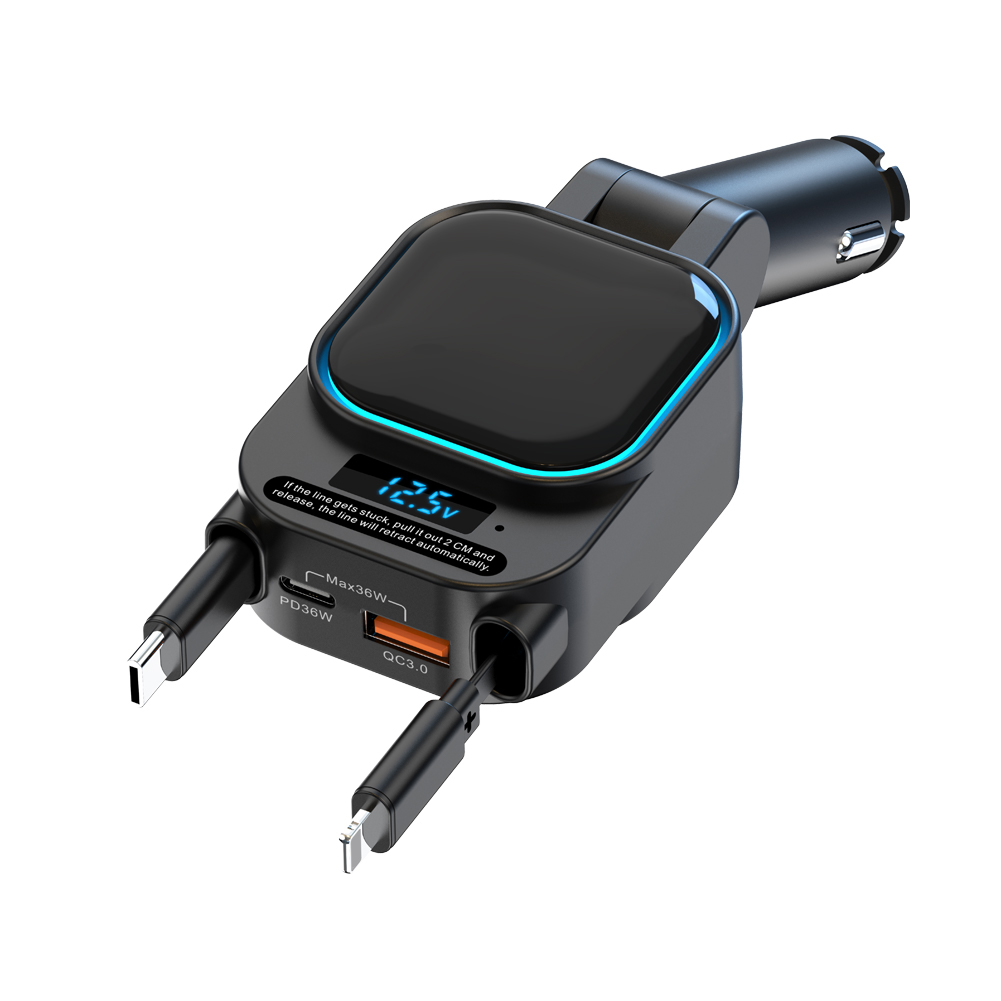

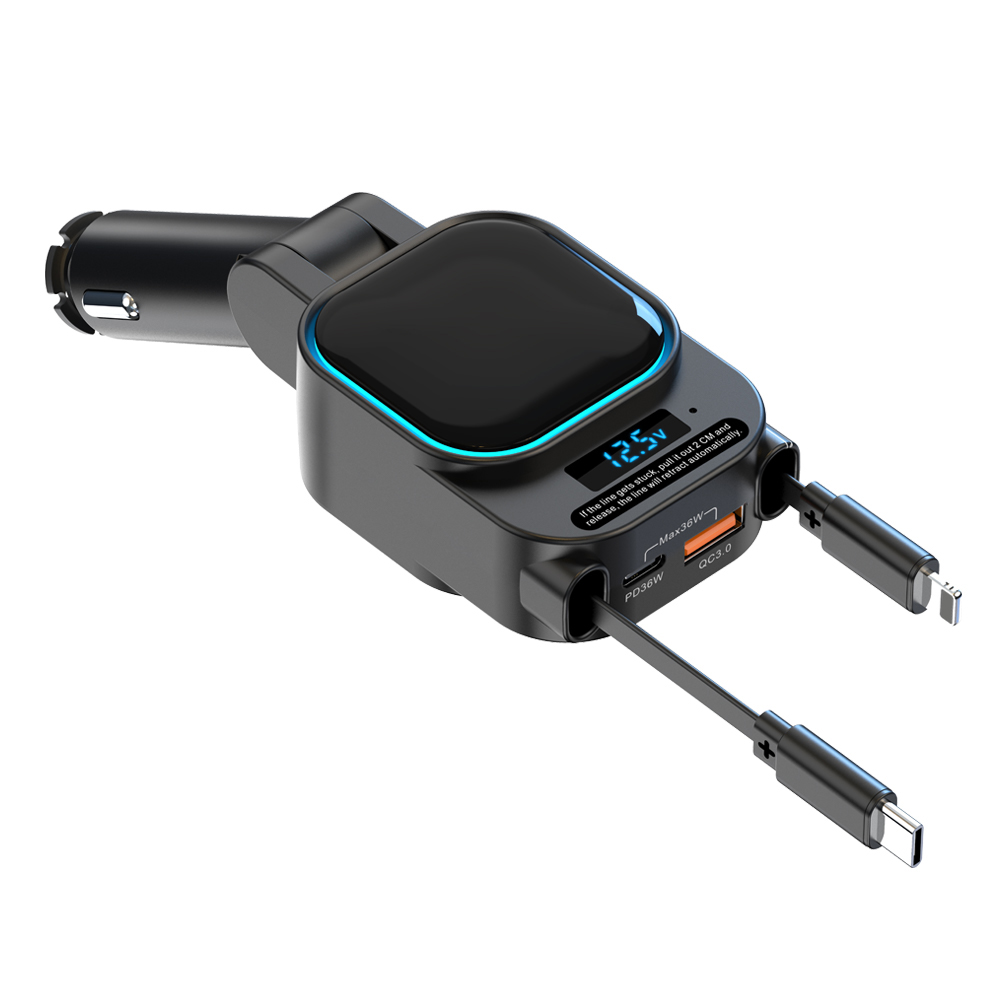

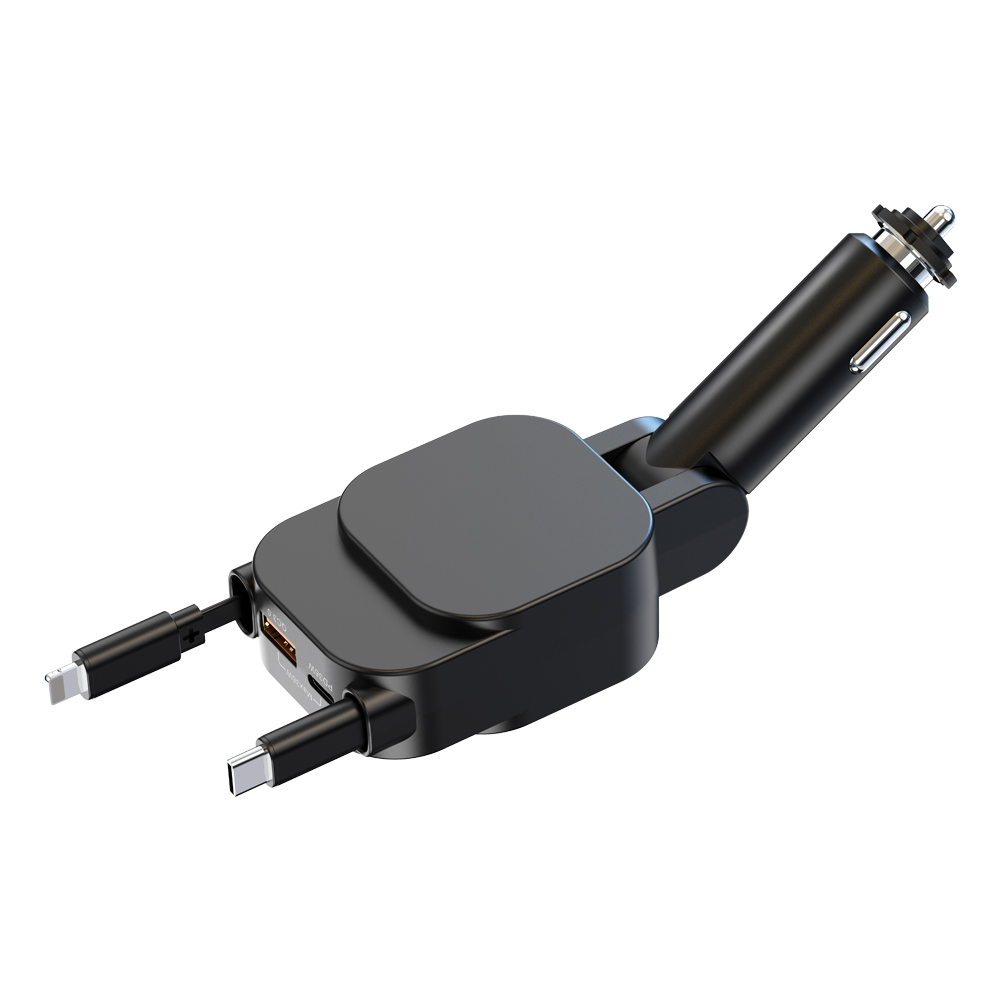

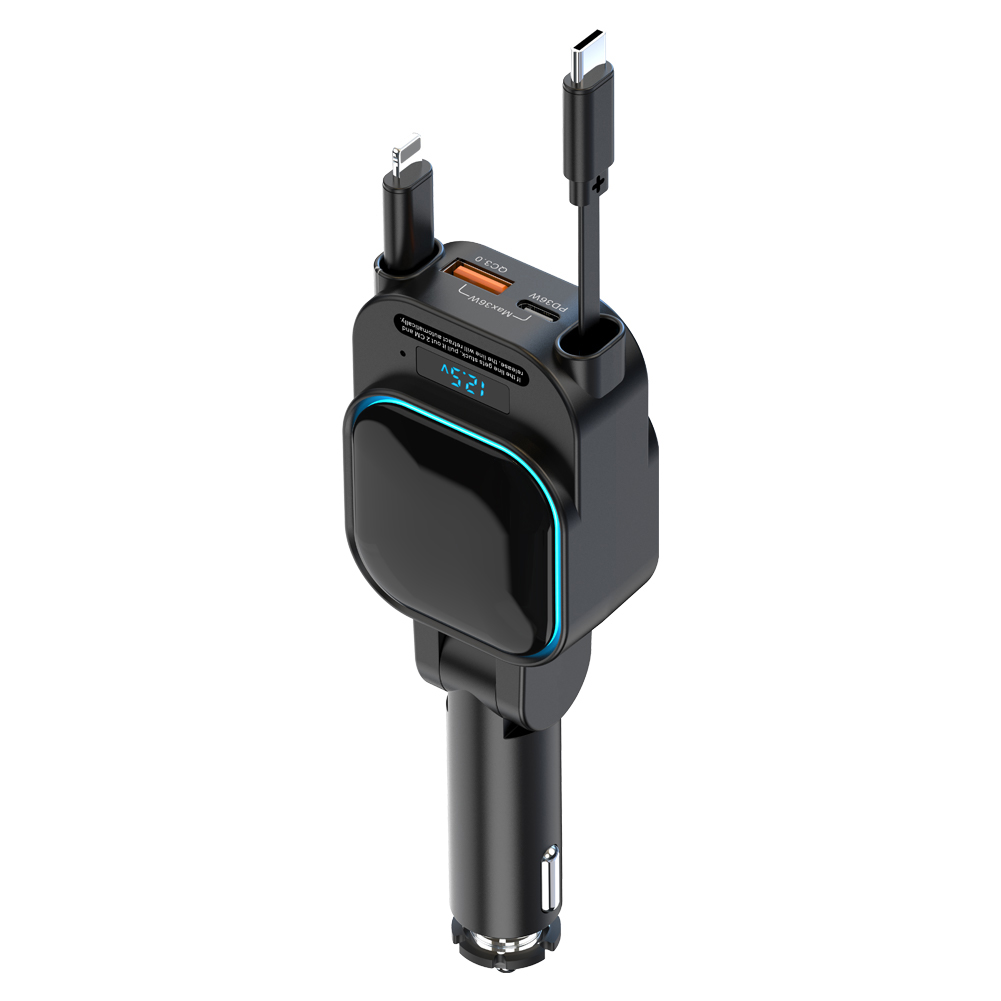

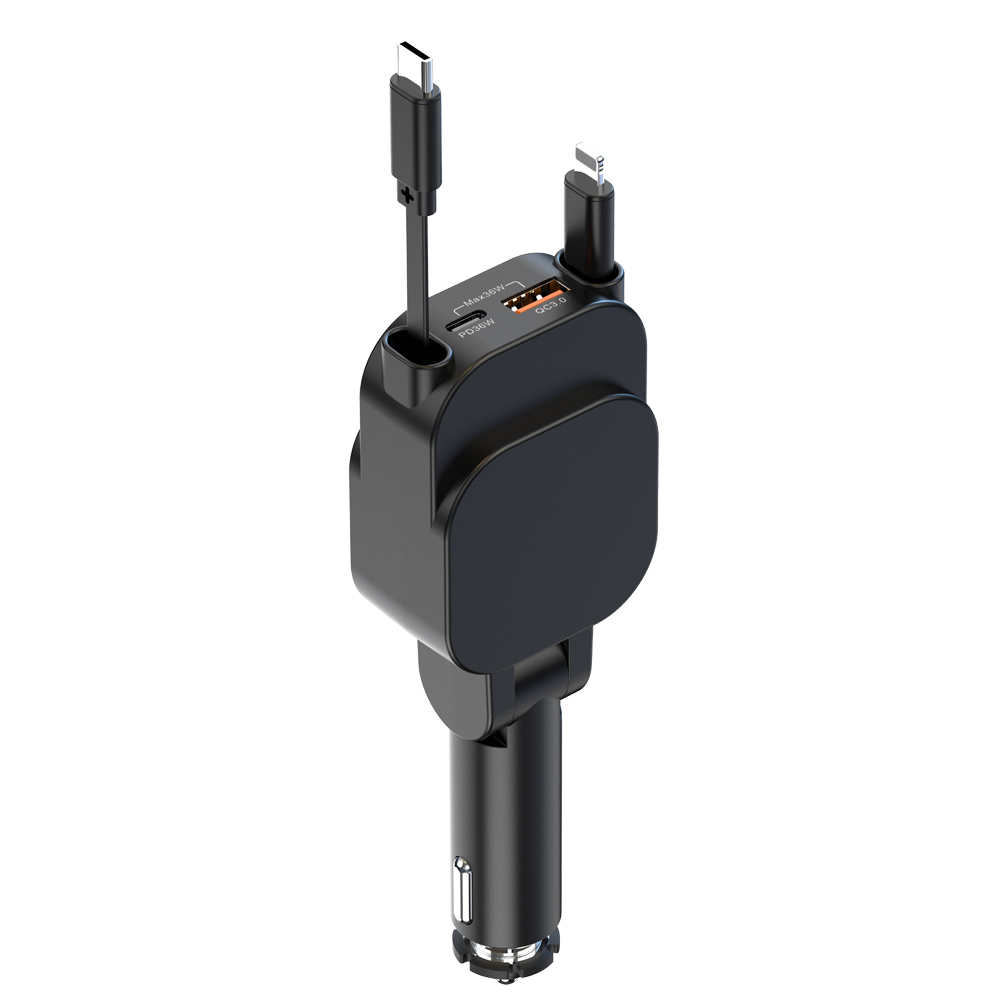

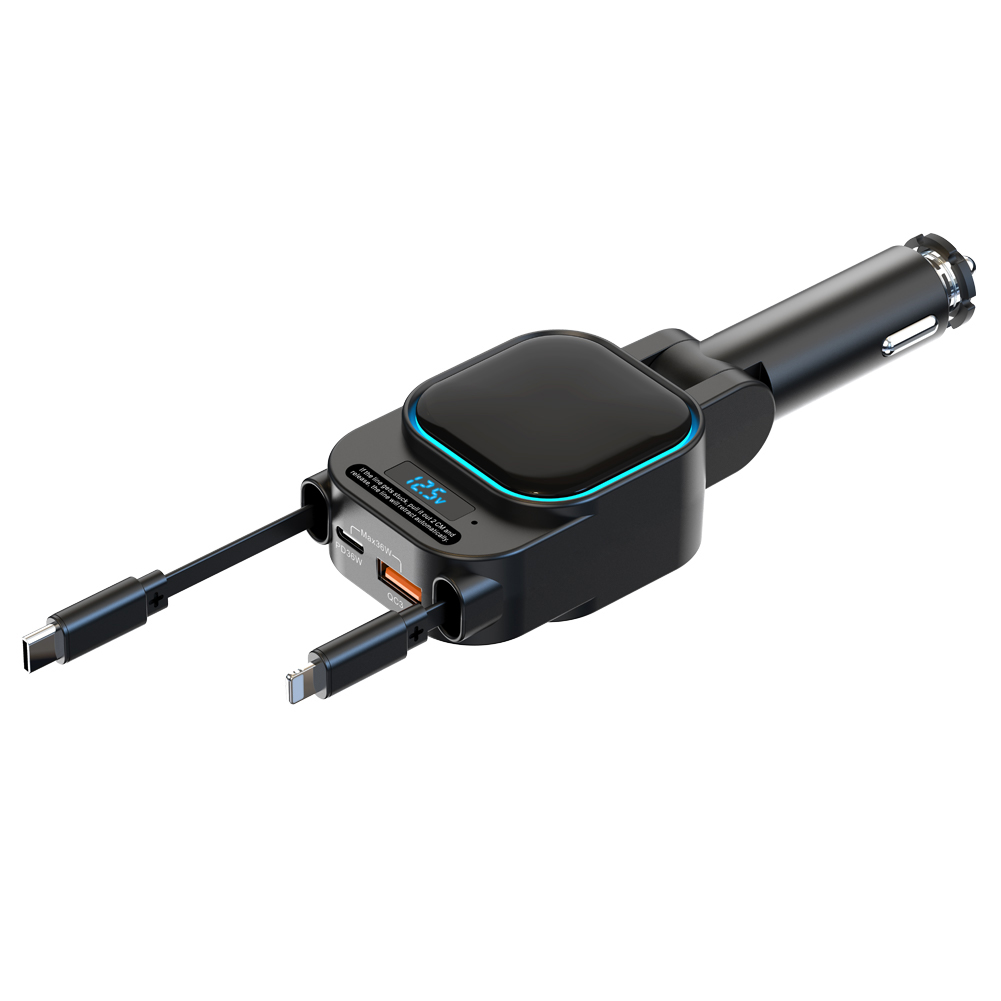

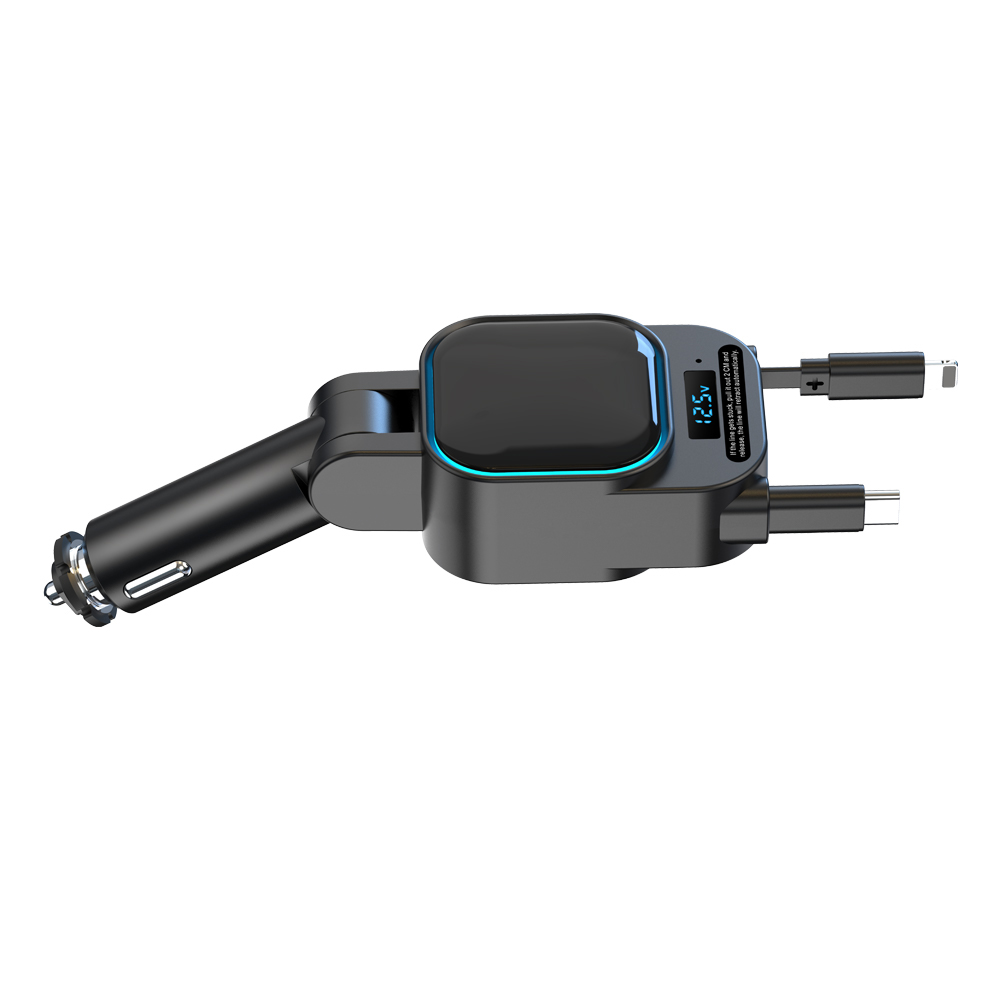

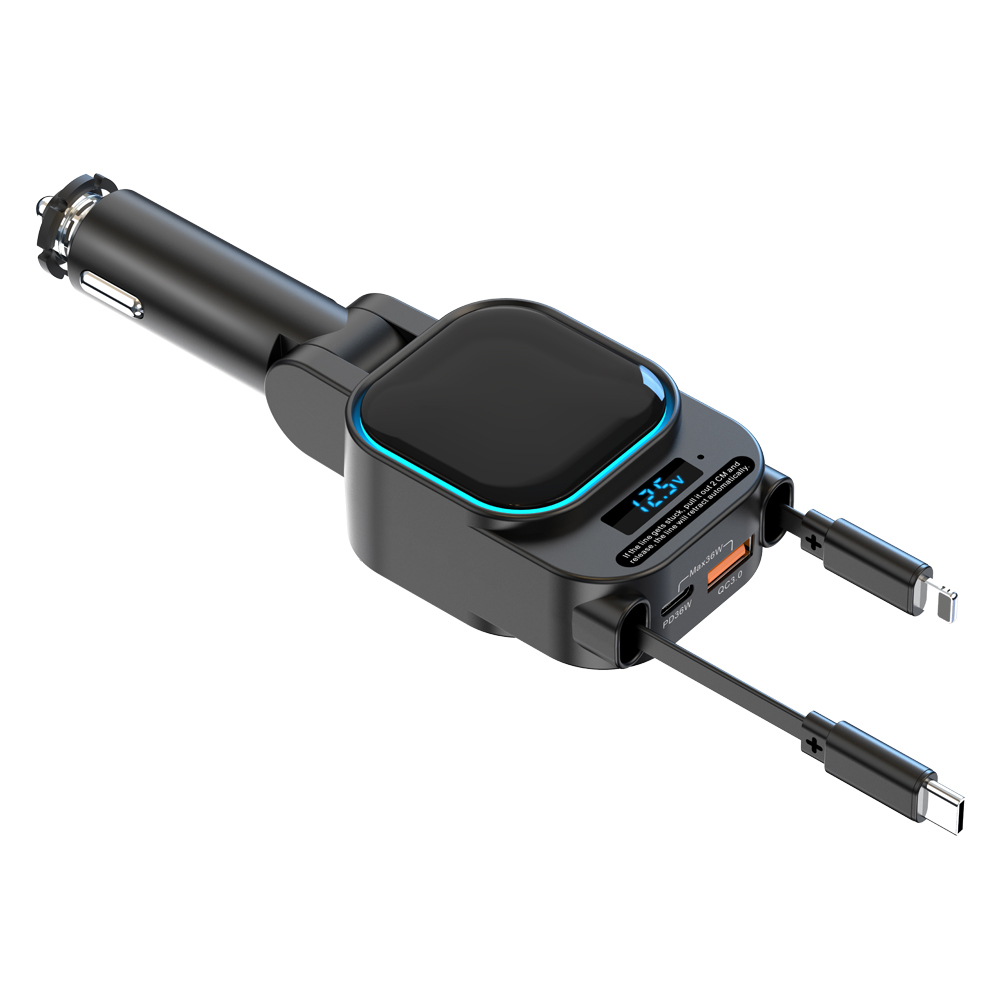

I. Schematic Appearance

                                                  　　　　　　　　　　　　　II. Features                                    　　　　　　　　　　

1. Support simultaneous charging of multiple devices

2. Extended charging HUB

3. 96W output

4. Support SCP、FCP、AFC、QC2.0、QC3.0、PD3.0 fast charge protocol

5. Multiple protection :support input over-voltage protection, output over-current protection, output short-circuit protection, over-temperature protection

6. Suit for 12V-24V car

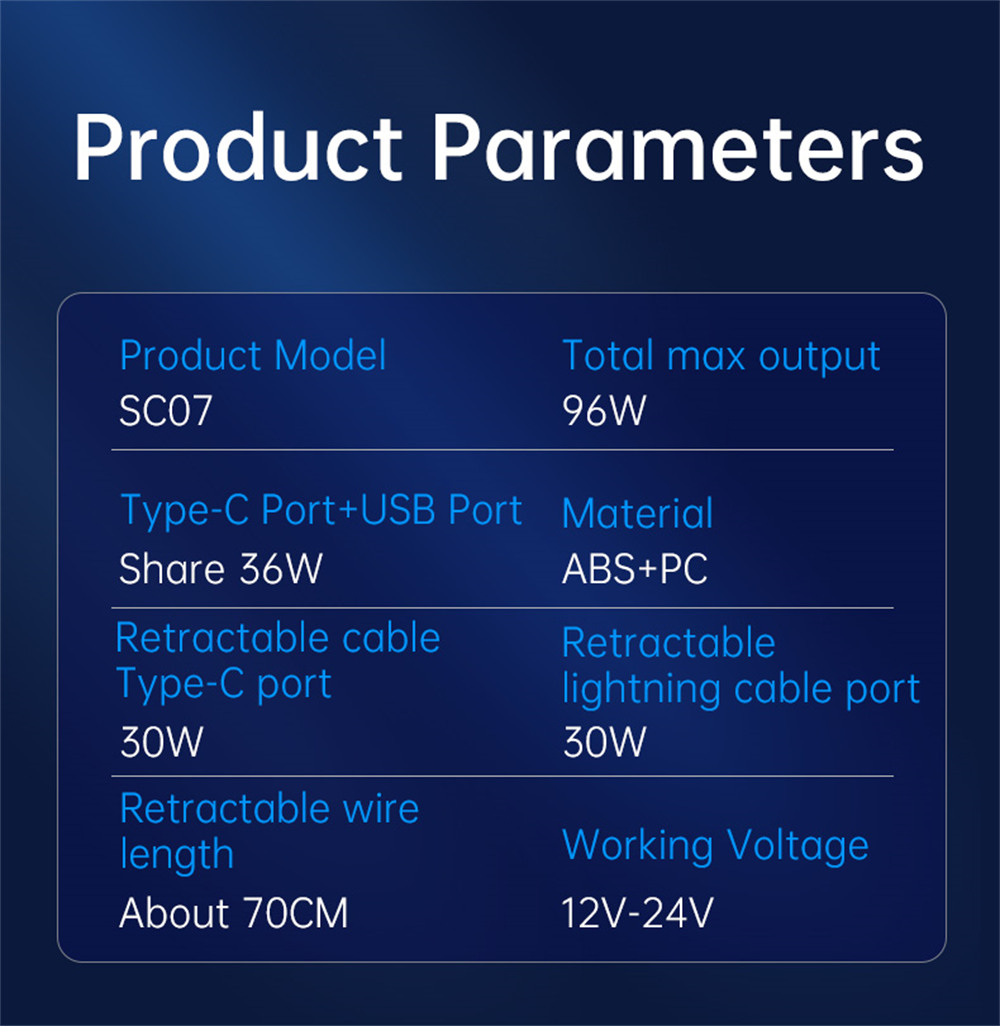

III. Product parameters

1.     Name：Dual retractable cable car charger

2.     Model：SC07

3.     Material：ABS+PC

4.     Output：12-24V

5.     QC3.0 port:  5V/3A、9V/2A、12V/1.5A

PD36W port：5V/3A、9V/3A、12V/3A

PPS:3.3V-11V/3A

*（QC and PD ports on the machine）The maximum output is 5V/3A for simultaneous use

Retractable cable Type-C port：5V/3A、9V/3A、12V/2.5A

PPS:3.3V-11V/3A

retractable cable Lightning port：5V/3A、9V/3A、12V/2.5A

PPS:3.3V-11V/3A

6.     Total max output：96W

7.Retractable wire length：about 70CM

IV. Directions for use

1. Insert the product into the cigarette lighter of the car, after power on, the indicator of the car charger lights up, means the car charger is working normally.

2. Insert the charging cable to the charging port of the car charger and connect with the mobile phone or other digital devices to charge the device

V. Matters needing attention

1. Please charging after the car engine is started

2. This product is not waterproof, please note that no water or other unknown liquid seep in

3. This product is electronic products, do not drop or collide with the product strongly

4. It is suggested to use brand charging cable for high power charging

VI. Troubleshooting

VII. Packing list

1. Manual*1    2. SC07 car charger*1
