SC09 Single Cable Car charger
manual
Features
1. Support simultaneous charging of multiple devices
2. PD65W high-power output
3. Support FCP、AFC、QC2.0、QC3.0、PD3.0 fast charge protocol
4. Support input over-voltage protection, output over-current protection, output short-circuit protection, over-temperature protection
5. Suit for 12V-24V car

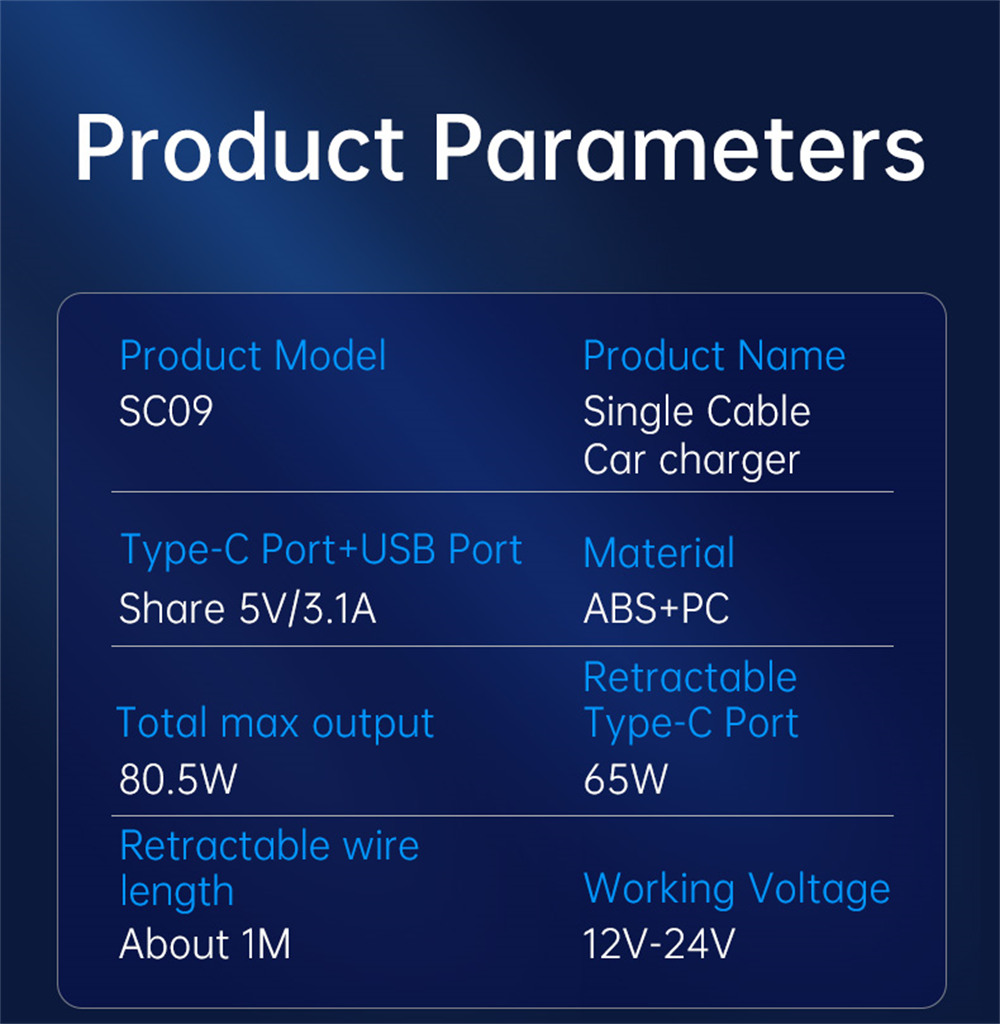

Product Parameters
1. Name：Retractable Cable Car charger
2. Model：SC09
3. Material：ABS+PC
4. Input：12-24V
5. Retractable output： 5V/3A、9V/3A、12V/3A 、15V/3A、20V/3.25A
*15V-20V gear requires 24V input voltage
TYPE-C port/USB-A port output：5V/2.4A
* Dual port shared maximum output 5V/3.1A
6. Total max output：80.5W

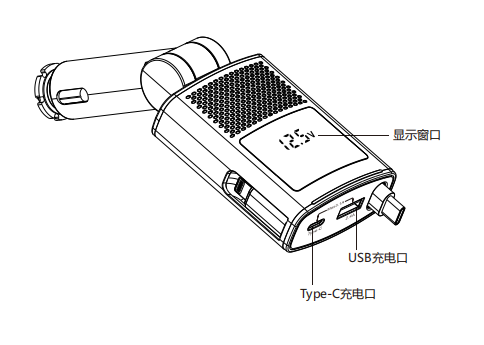

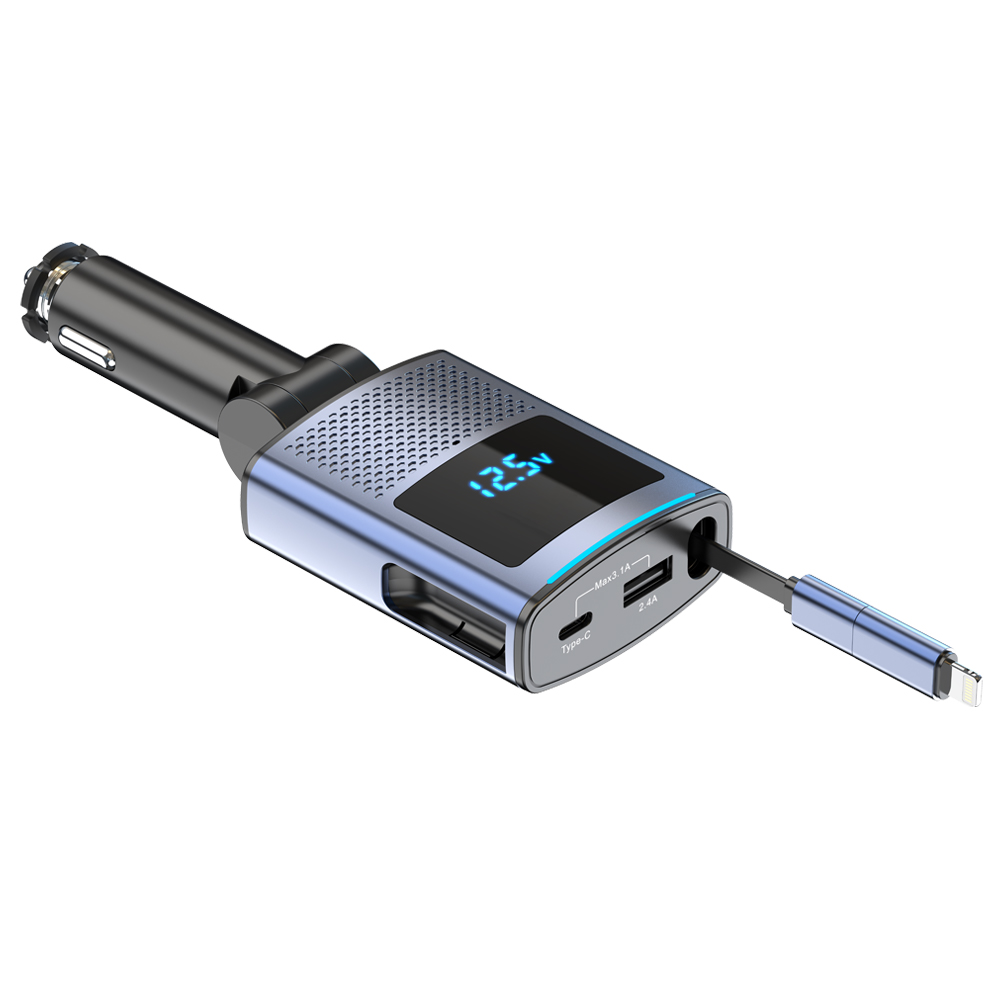

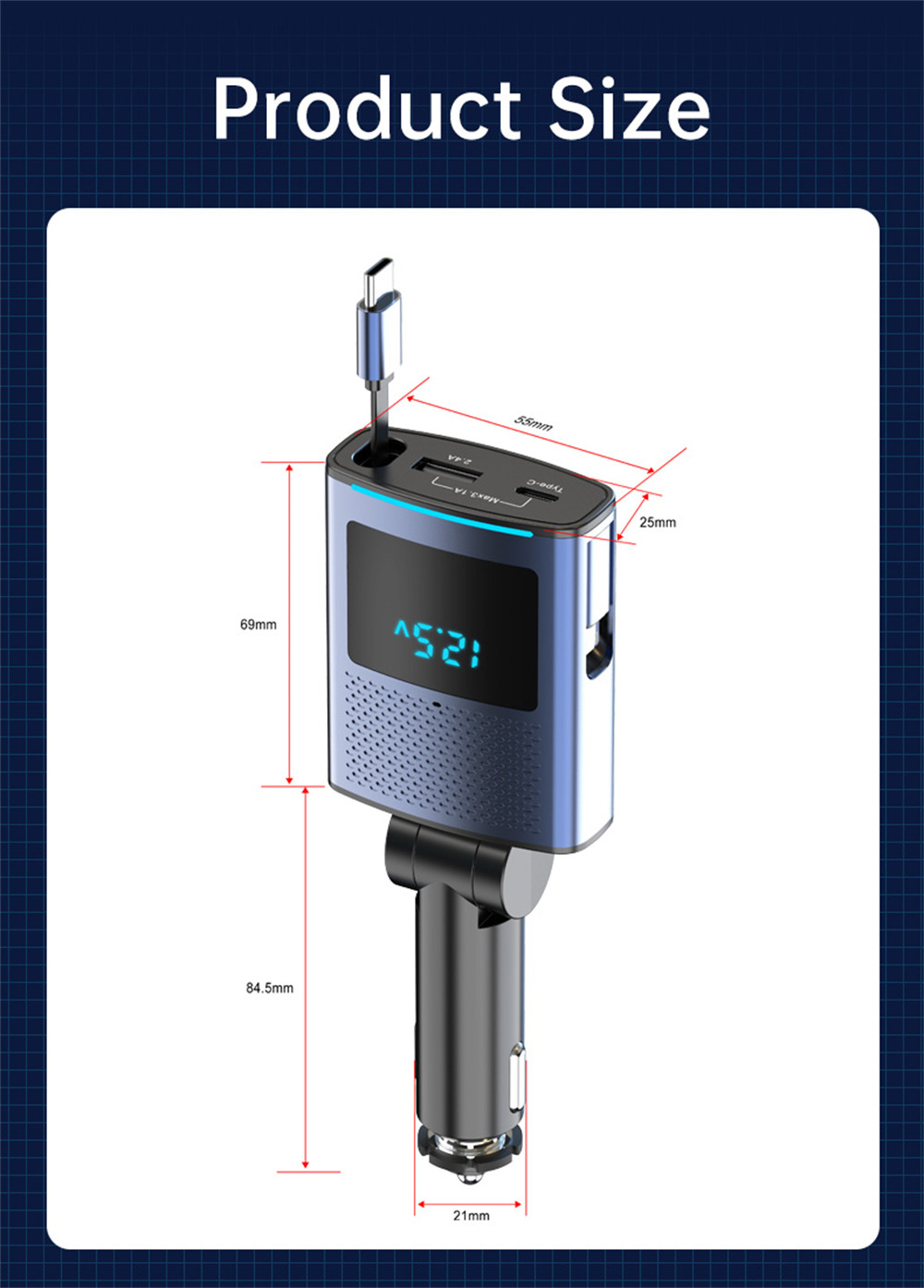

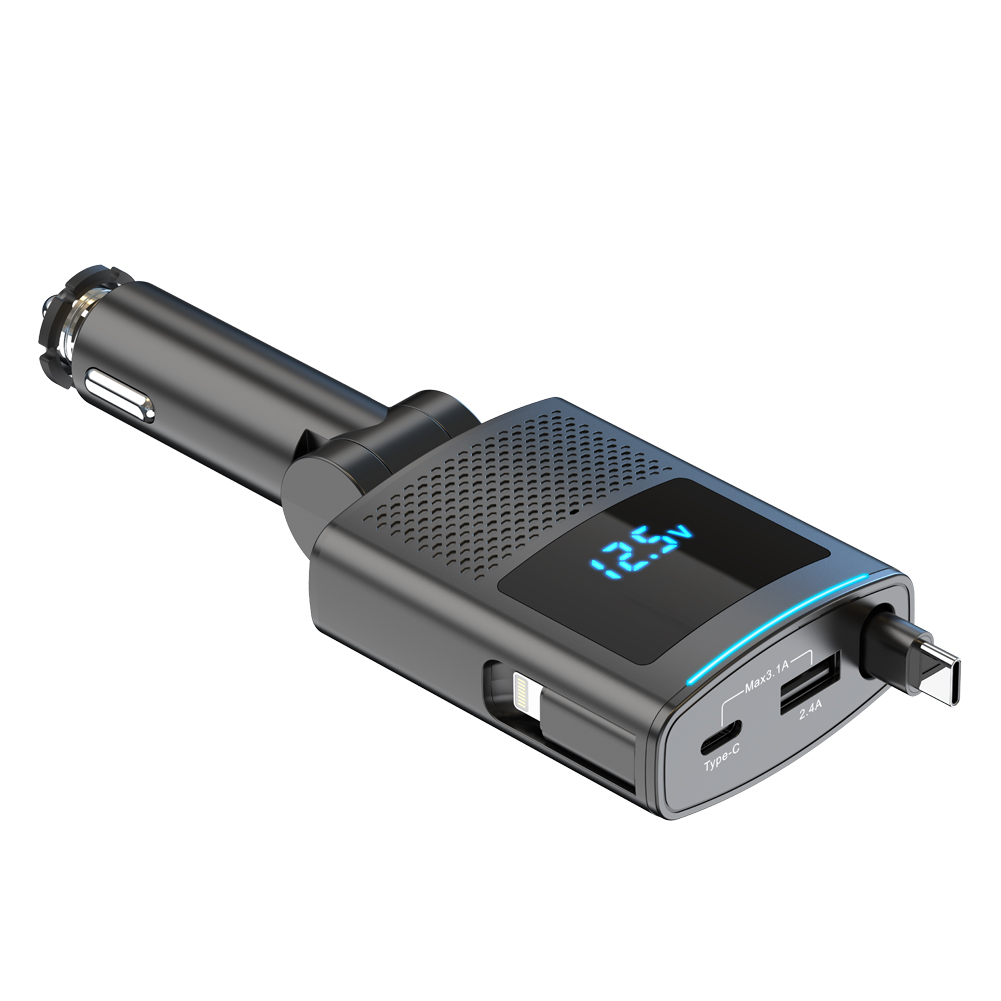

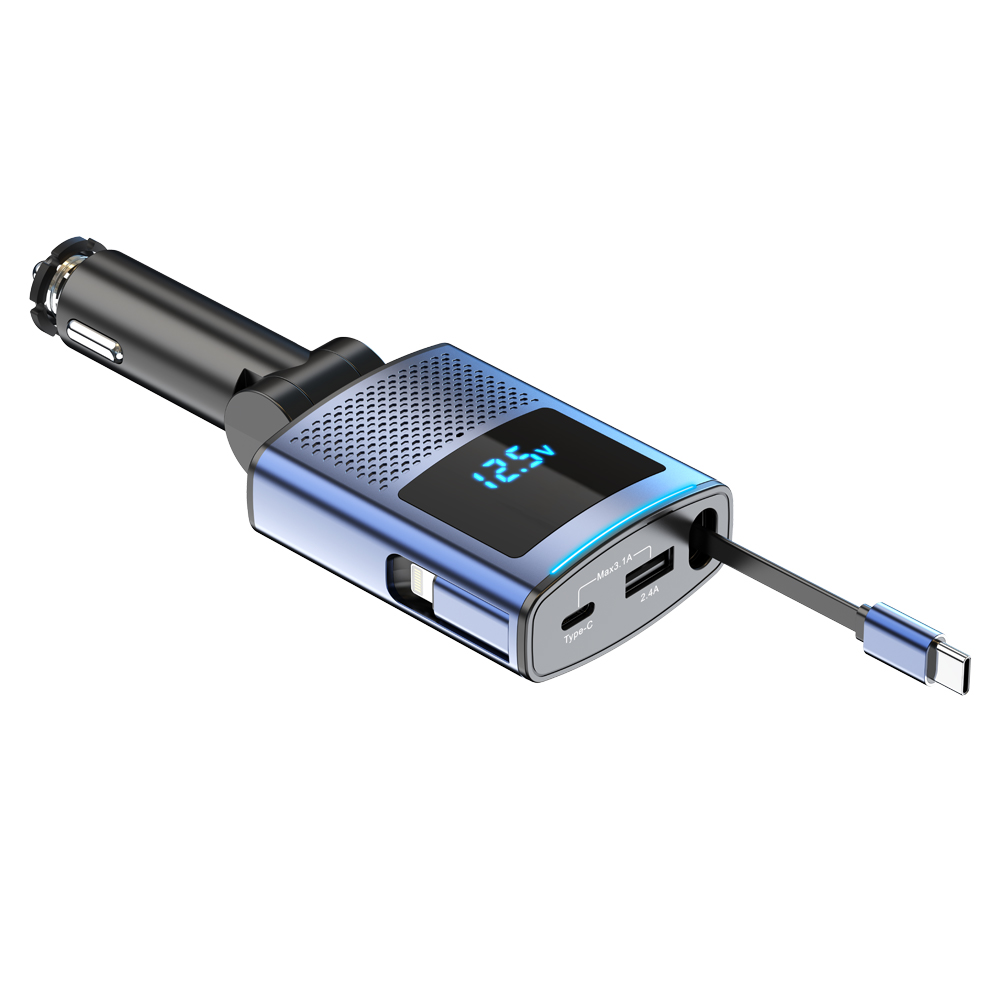

Product diagram:
显示窗口 Display
USB充电口 USB-A Charging Port
Type-c充电口 Type-C Charging Port
Operating instructions:

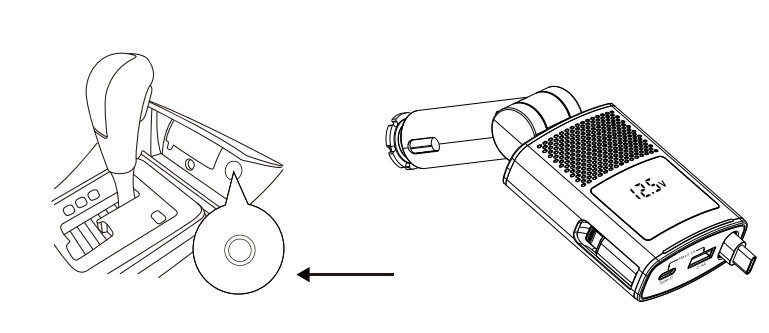

1. Insert the product into the cigarette lighter of the car after vehicle start.
2. After insertion, the device will automatically power on.
3. The charging port can be directly used to charge the device
Low Voltage Warning Function
When the battery voltage is lower than 11.5V, the voltage on display will flashes alarm
Matters needing attention
1. .Do not use this product in a dusty and humid environment with extremely high and low temperatures.
2. Do not drop the product to avoid surface damage or breakdown.
3. Do not disassemble the product, if you have any questions, please contact your dealer.
4. Due to continuous improvement and enhancement of technology, changes in product performance and functionality are subject to change without notice.
Troubleshooting
|
Power is not responding or no display |
1. Check if the product is in good contact with the cigarette port, and the cigarette holder is not seriously rusted. 2. Unplug and re-try again 3. Check if the cigarette holder is powered normally |
|
Not charging |
Pull out all the cables on the car charger and insert the cables and devices that need to be charged separately Change a brand charging cable |
|
No fast charge |
.Huawei SCP super fast charge, it needs 5A cable to output normally . Currently not support OPPO and VIVO phones with VOOC super fast charge protocol. |
Packaging accessories
1. User manual 2. Main device 3. TYPE-C to Lightning Adapter
