V11+SMultifunctional Vacuum Cleaner Manual

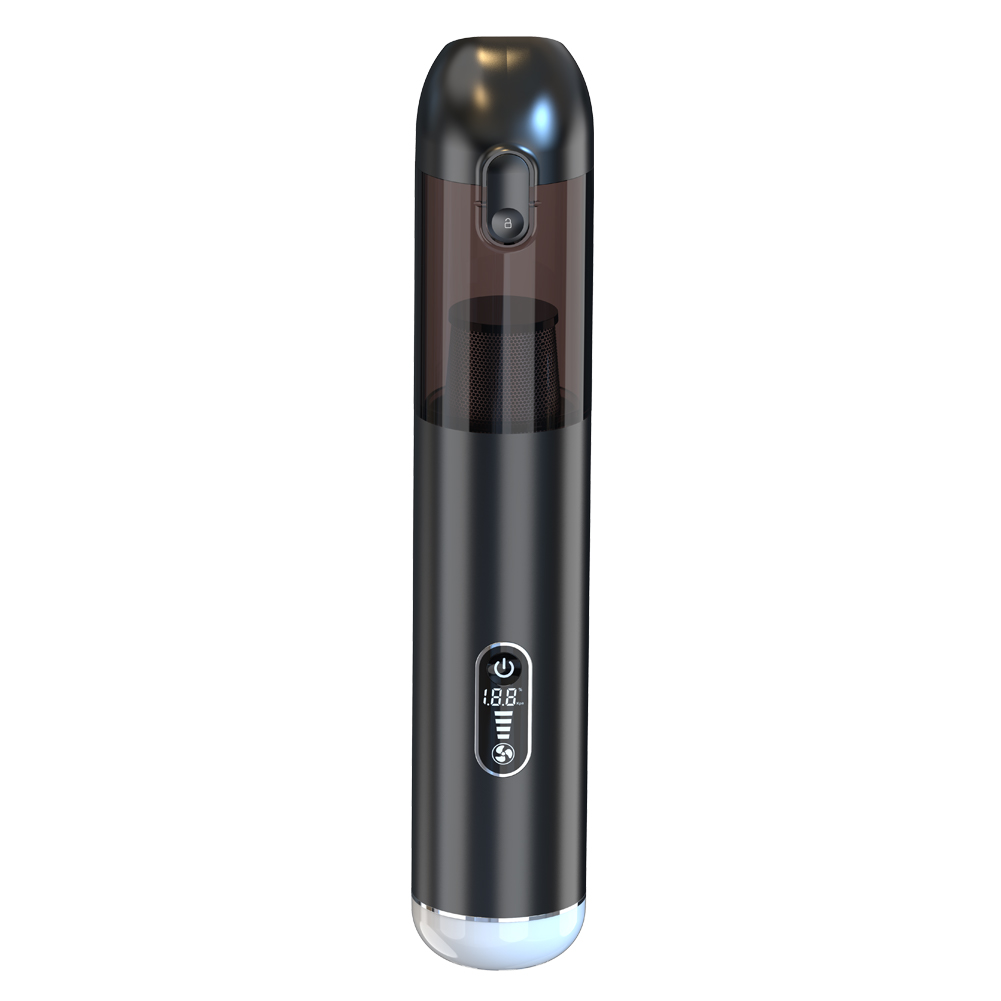

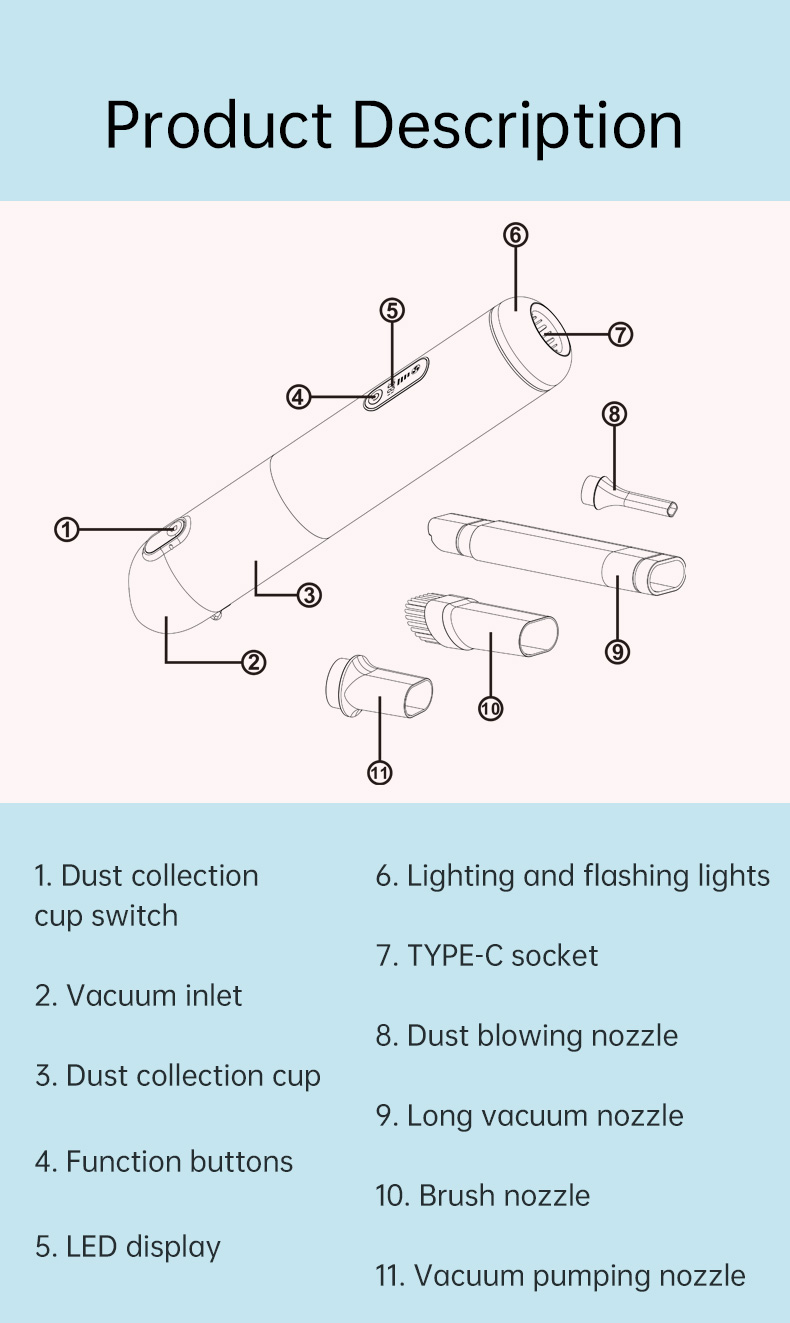

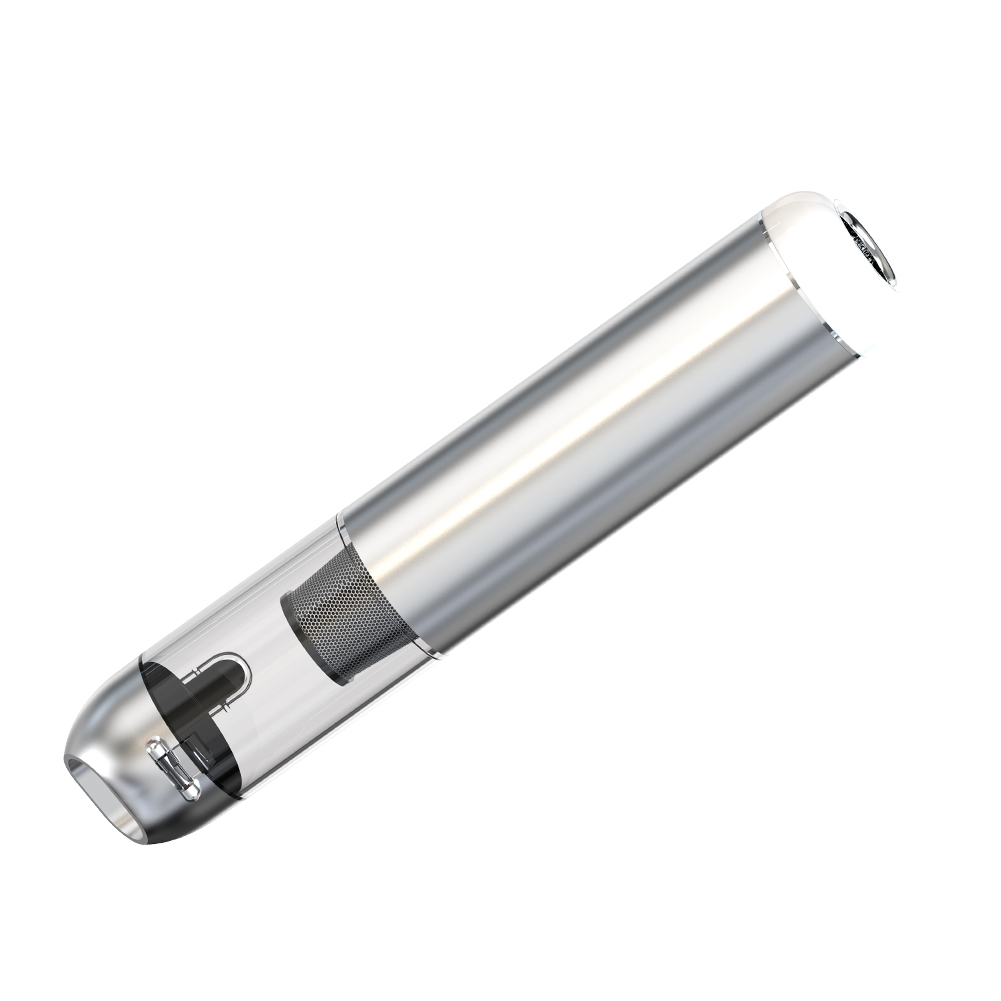

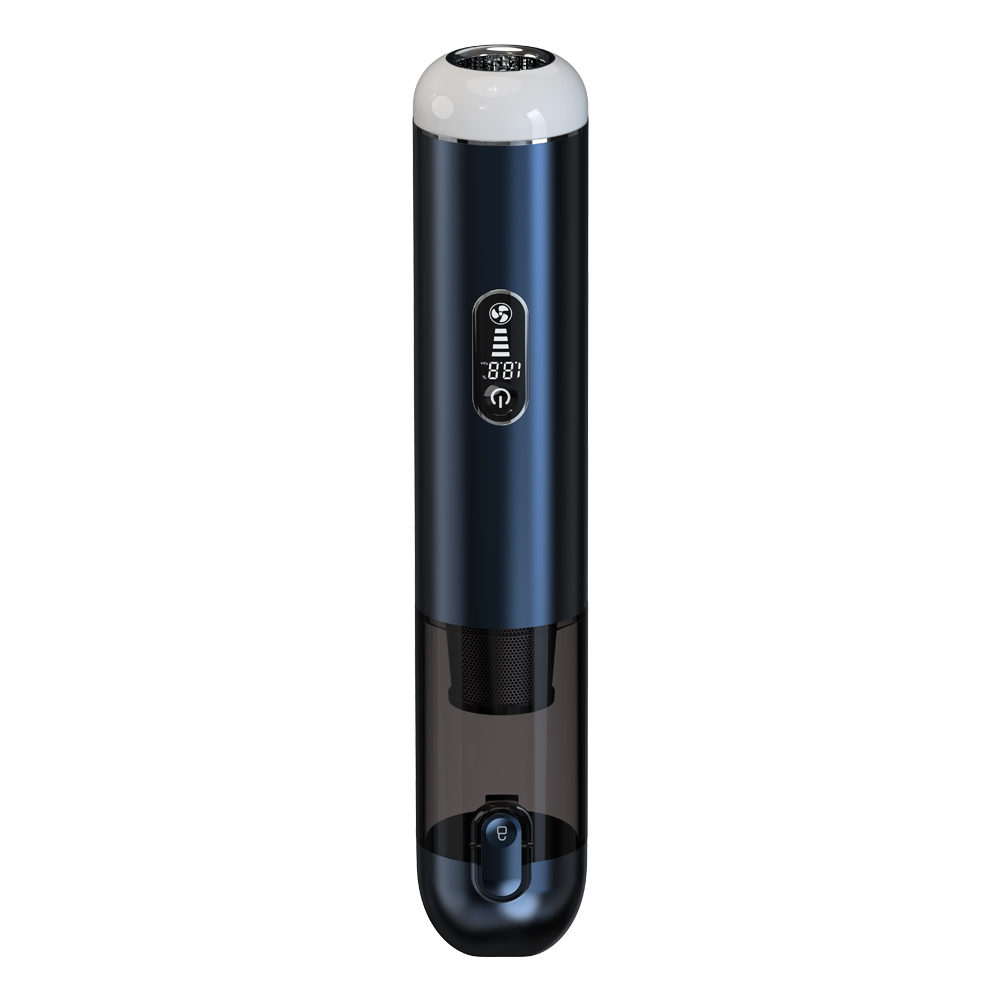

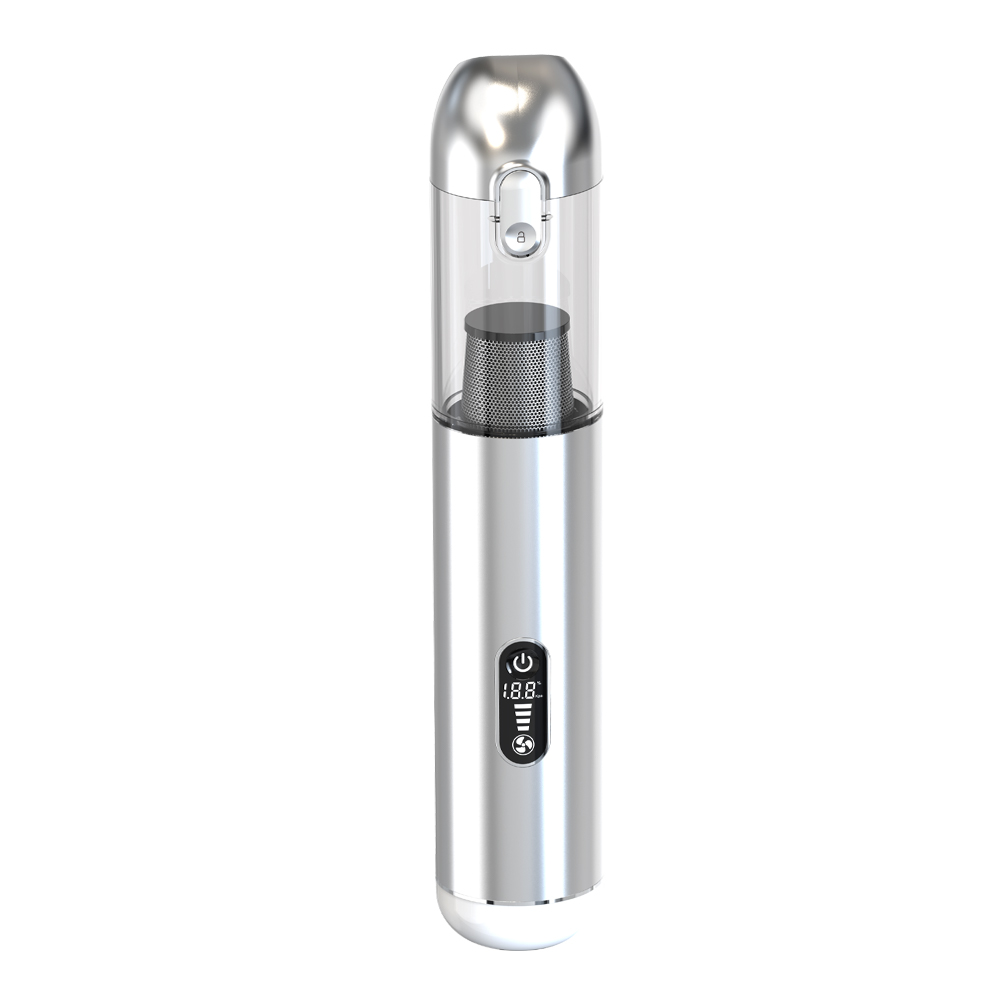

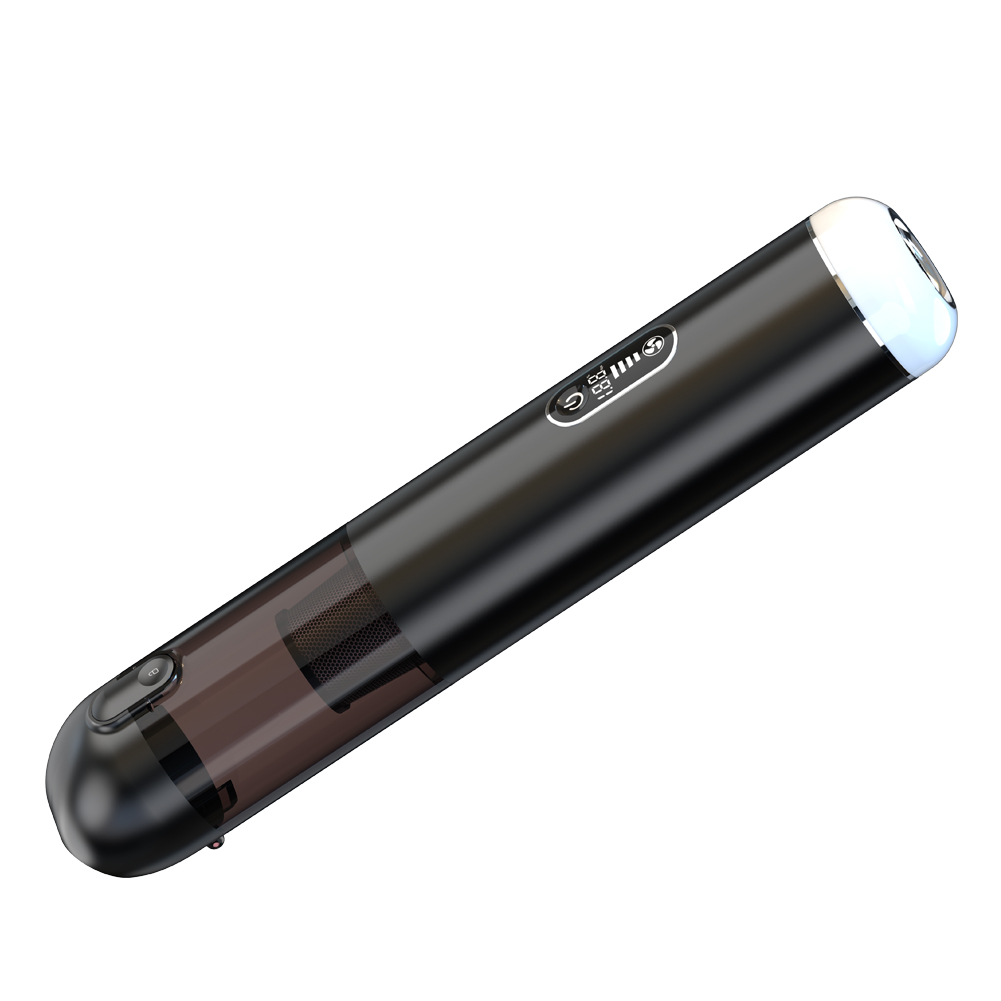

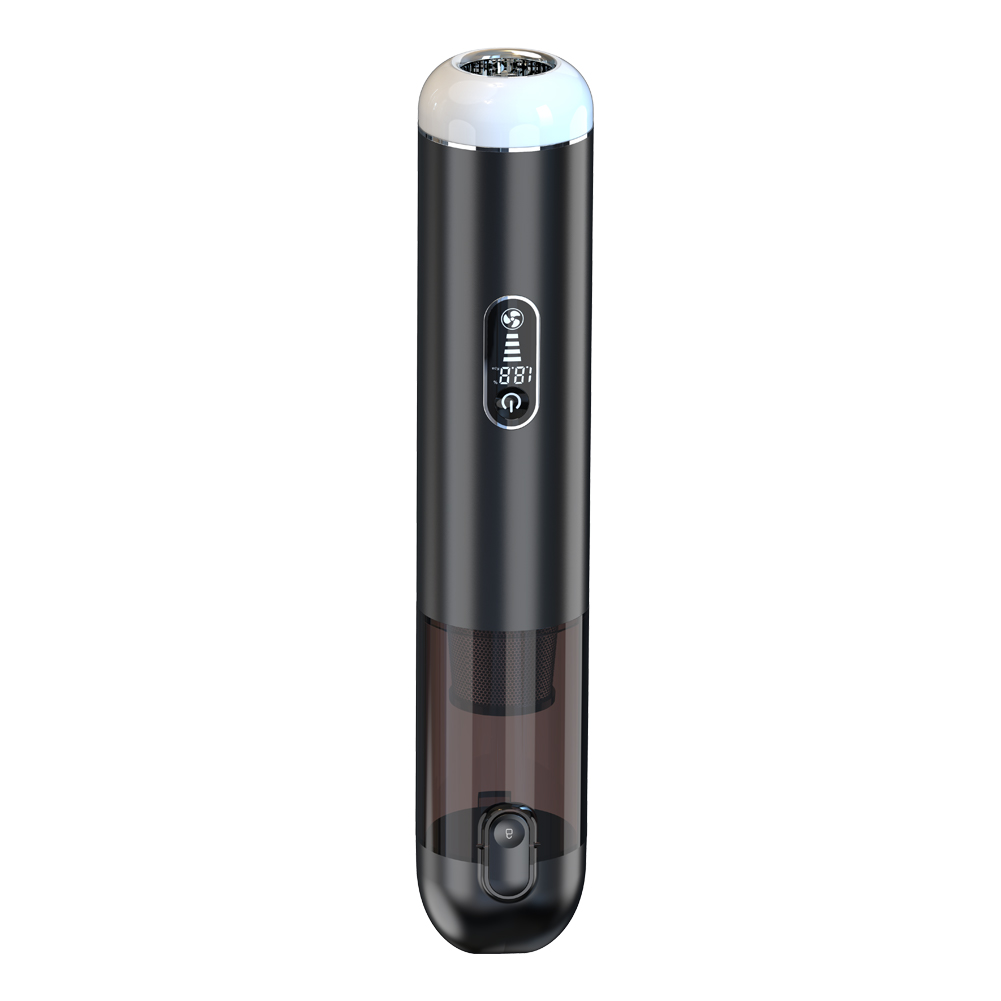

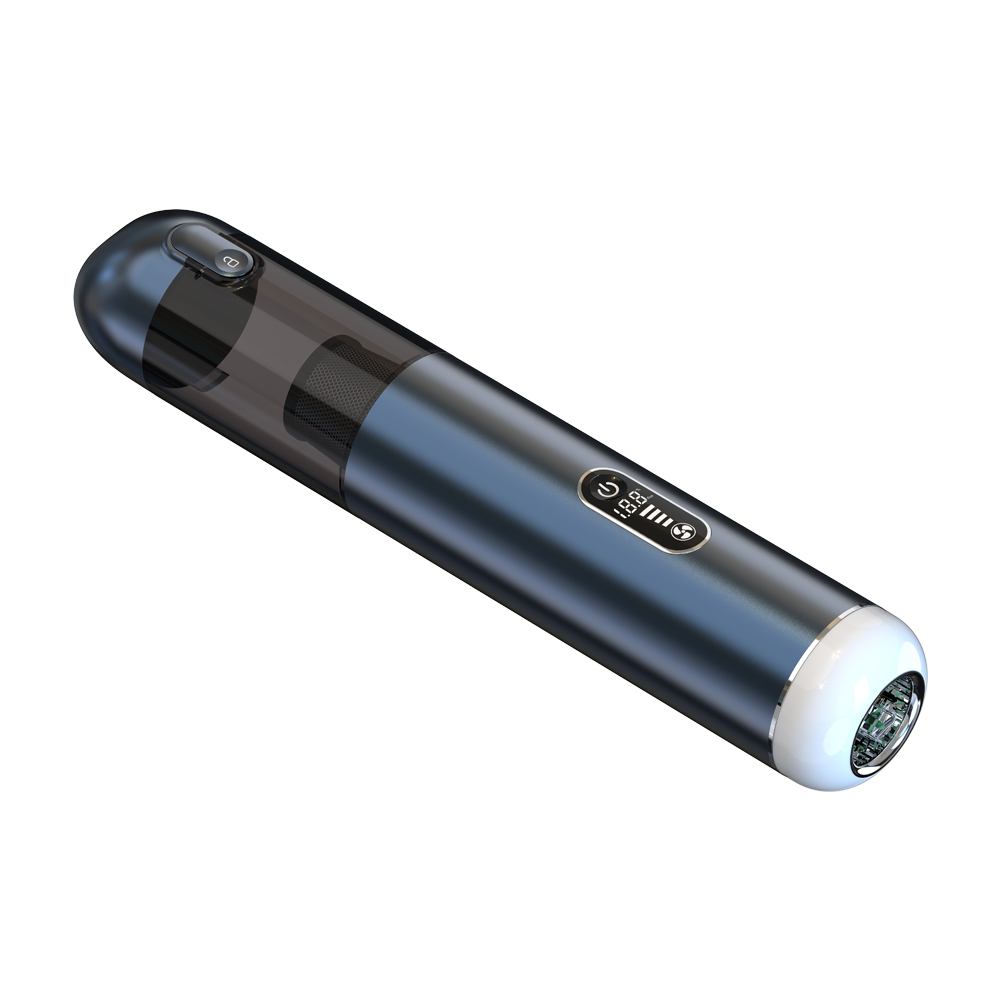

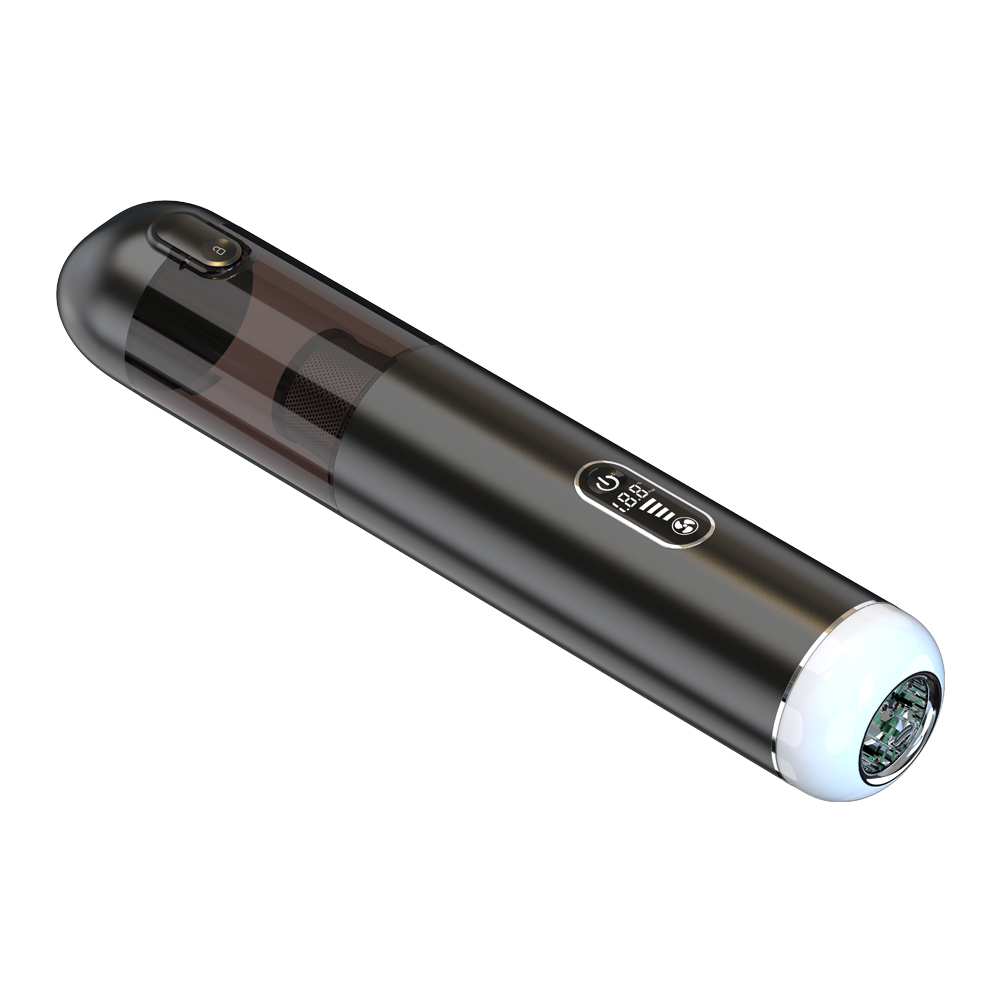

I. Introduction of main parts:

1. Dust collection cup switch

2. Vacuum inlet

3. Dust collection cup

4.Switch/function buttons:click  button start the Normal gear, press again start the Mid-gear, press again start the High gear, then press it to turn off; long press for 3s to turn on the light, press it again switch to flashing light, then press it to turn off.

5. LED display: display battery percentage/vacuum level (first level shows two grids/second level shows three grids/third level shows four grids)/suction KPa

6. Lighting light and outdoor flashing lights

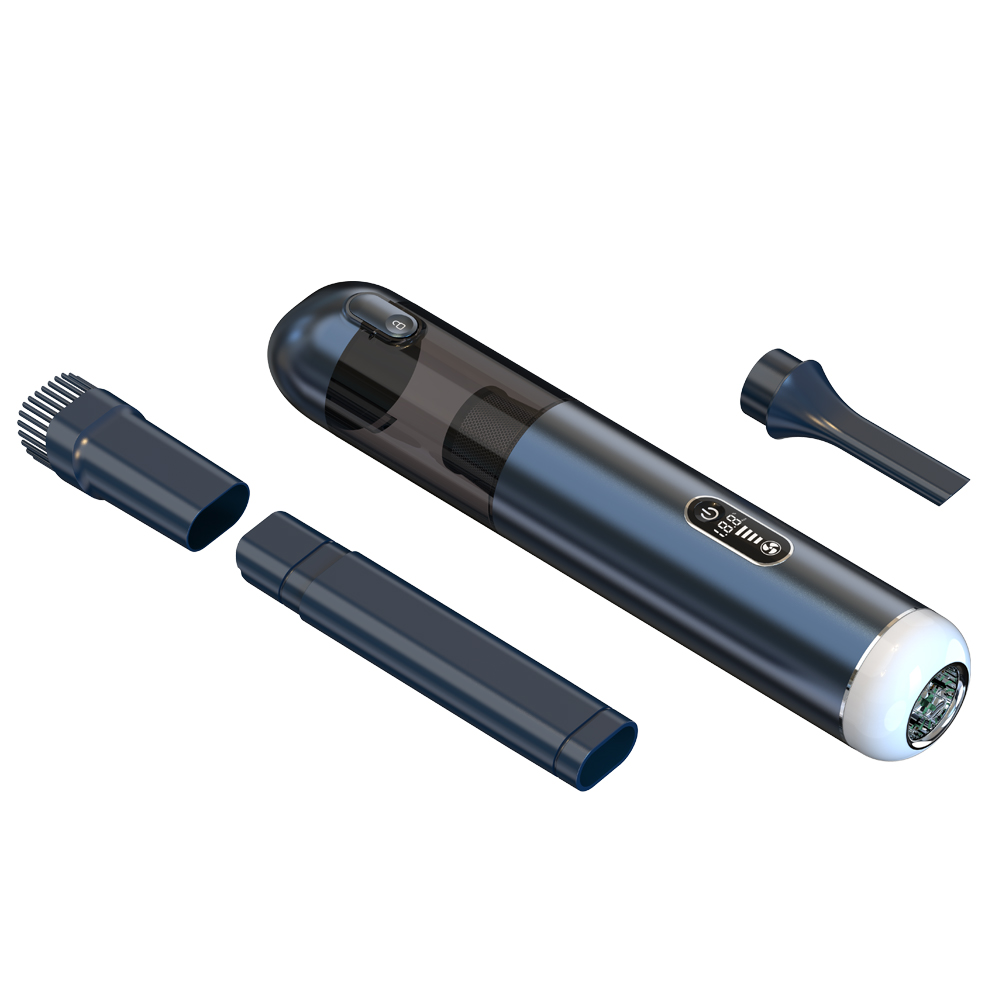

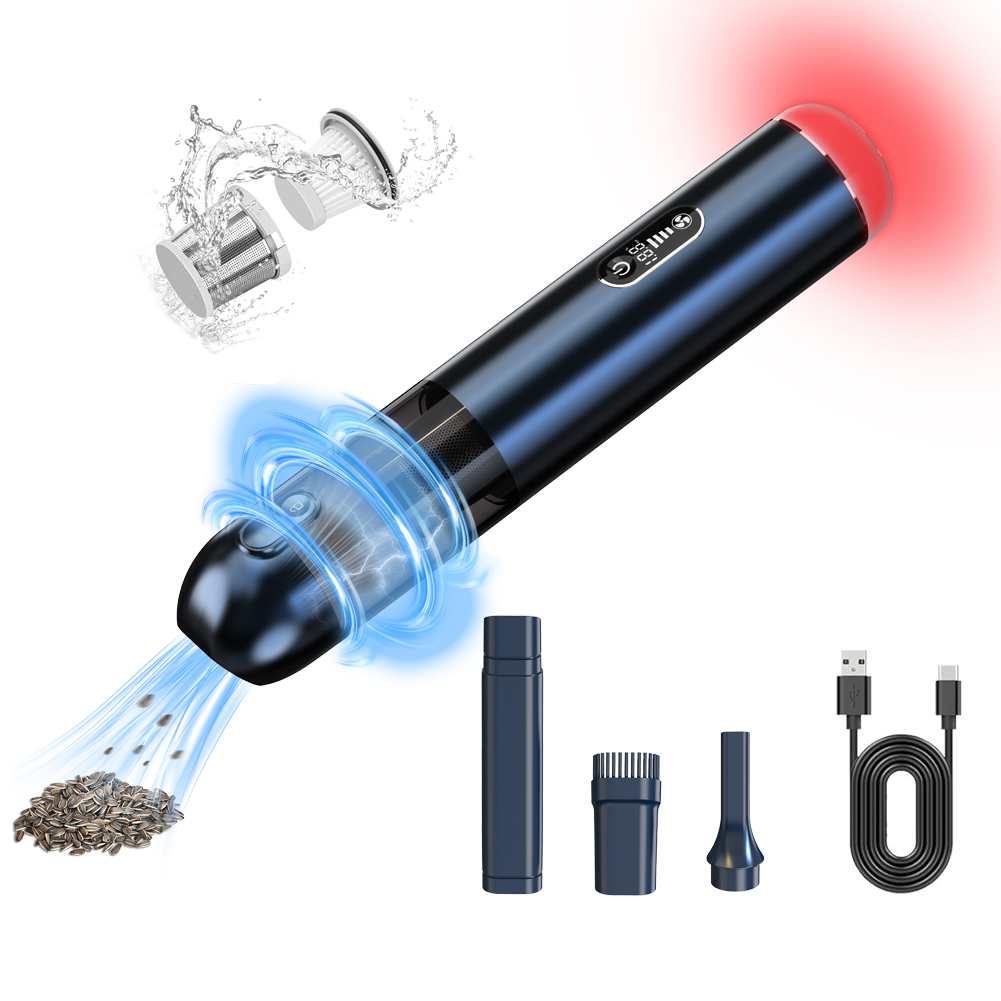

7. TYPE-C port / fast charging

8. Dust blowing nozzle (can be used outdoors, car cushion dust blowing )

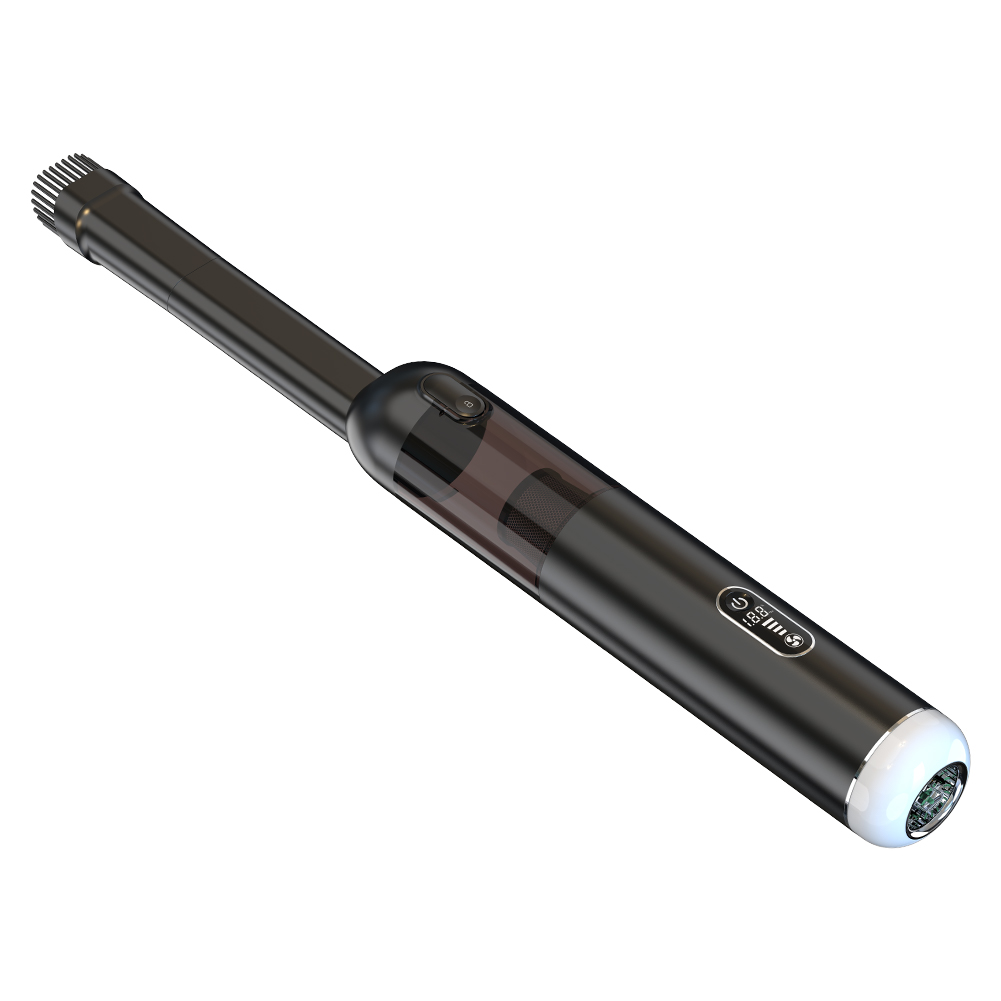

9. Long vacuum nozzle (used to extend the brush head to clean out-of-reach areas)

10. Brush nozzle(with a brush for vacuuming after cleaning)

11. Vacuuming nozzle (can be used to vacuuming storage bags)

II. Precautions before operation::

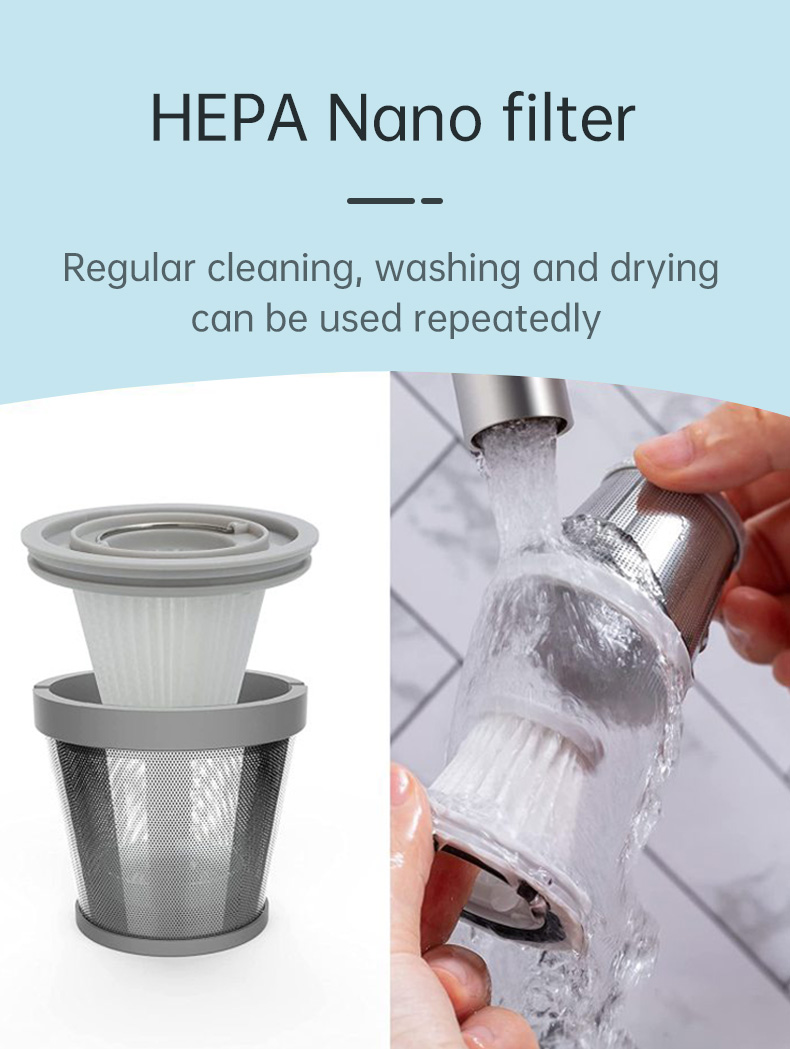

* Before use, please confirm whether all parts are assembled in place, especially pay attention to the filter assembly in the dust box.

*For initial use or prolonged storage, please fully charge this device first. The fully charged battery level displays 100%, and the four cells remain lit.

* Note that it cannot be turned on during charging. It can not use unless the power is cut off.

* This product is not waterproof. Please do not inhale a large amount of water or liquid to avoid damage, especially flammable and explosive substances such as chemical solvents or alcohol.

*Do not inhale high heat substances (such as cigarette butts or hot ash during combustion) to avoid burning the filter screen or plastic parts and losing their filtering function.

* If abnormal noise is found during use, it should be immediately stopped. Please contact the after-sales department for confirmation and handling.

* Please place it in a cool place when not in use, and do not expose it to sunlight at a temperature exceeding 60 ℃! To avoid the risk of fire.

III. Instructions for use:

1. Vacuum function:

* Click   button to turn on, it is Normal gear, press again to the Mid-gear, press again to the High gear, and press again to turn off,equipped with a long suction nozzle and a brush,you can clean any place flexibly.

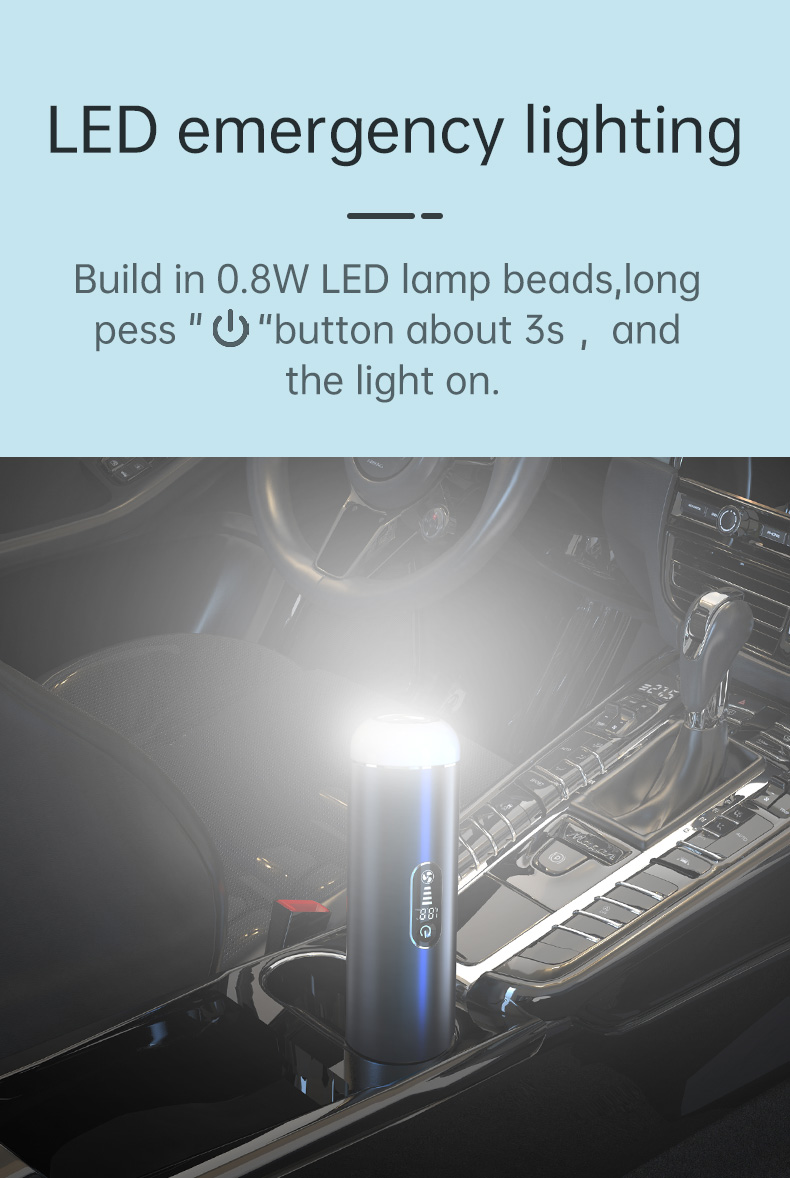

2. Lighting and flashing:

* To use the lighting, press the  button 3 seconds to turn on the lights,press it again will switch to flashing warning lights, and press again to turn off.

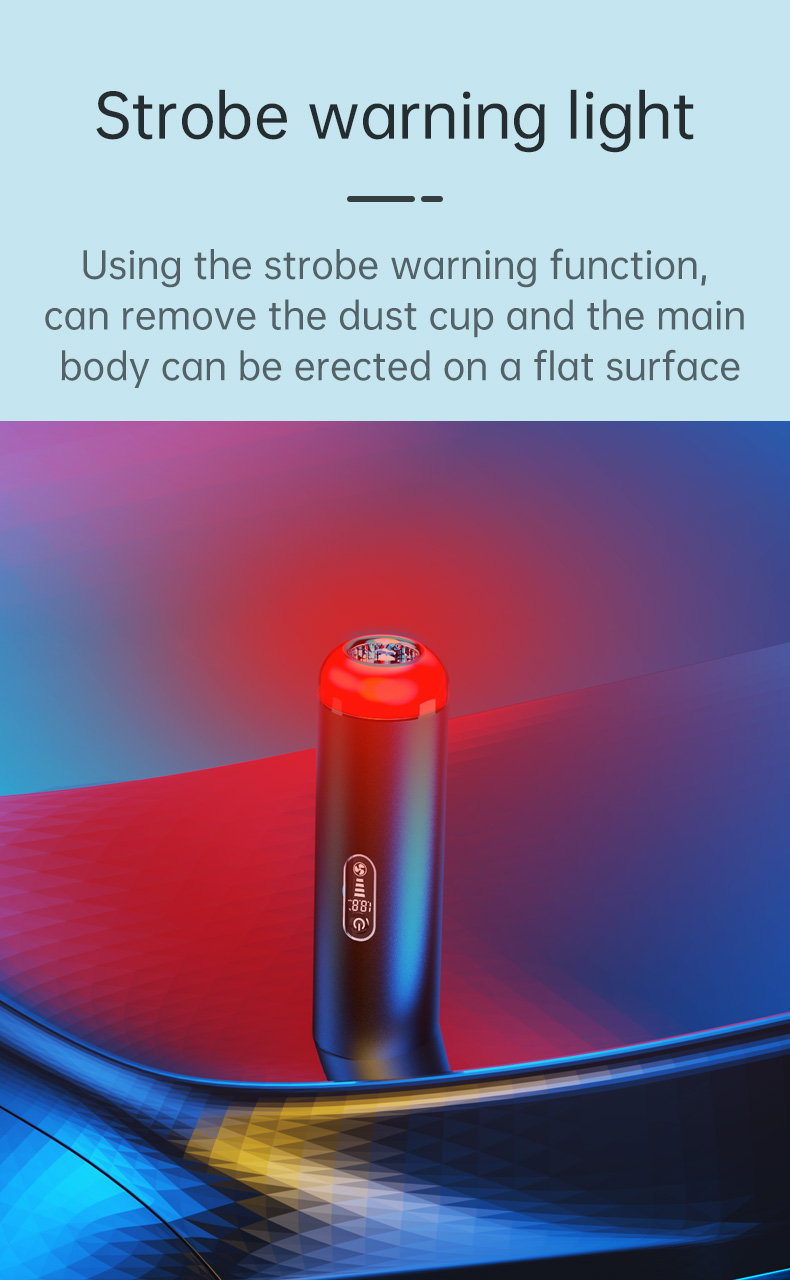

Note: For the convenience of using the flash warning function, the dust collection cup can be removed and the main body can be erected on a flat surface, or hang it.

3. Vacuum pumping function:

* After correctly installing the vacuum pumping nozzle, you can start pumping vacuum bags,due to different storage sizes, choose different gears to vacuum

Note: When the surface temperature of the product is too high, please stop using it in time to avoid damaging the product.

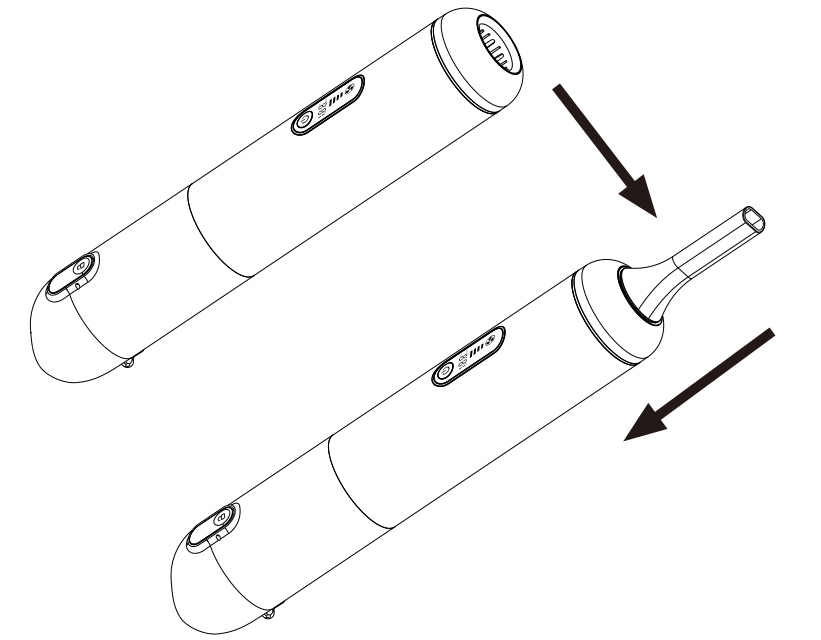

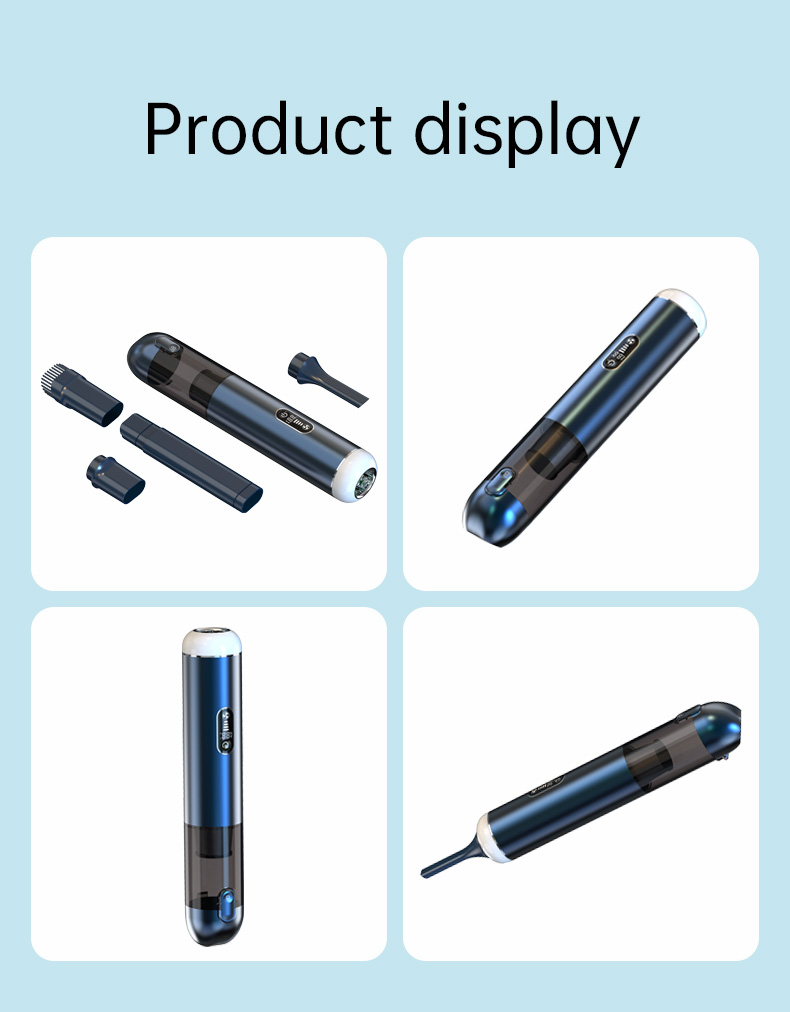

4.Product installation diagram

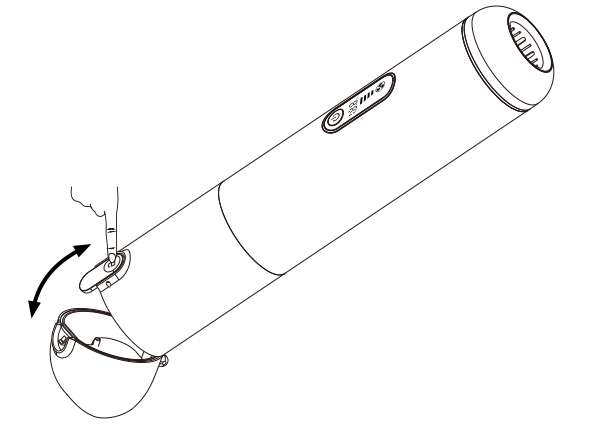

  Dust pouring diagram

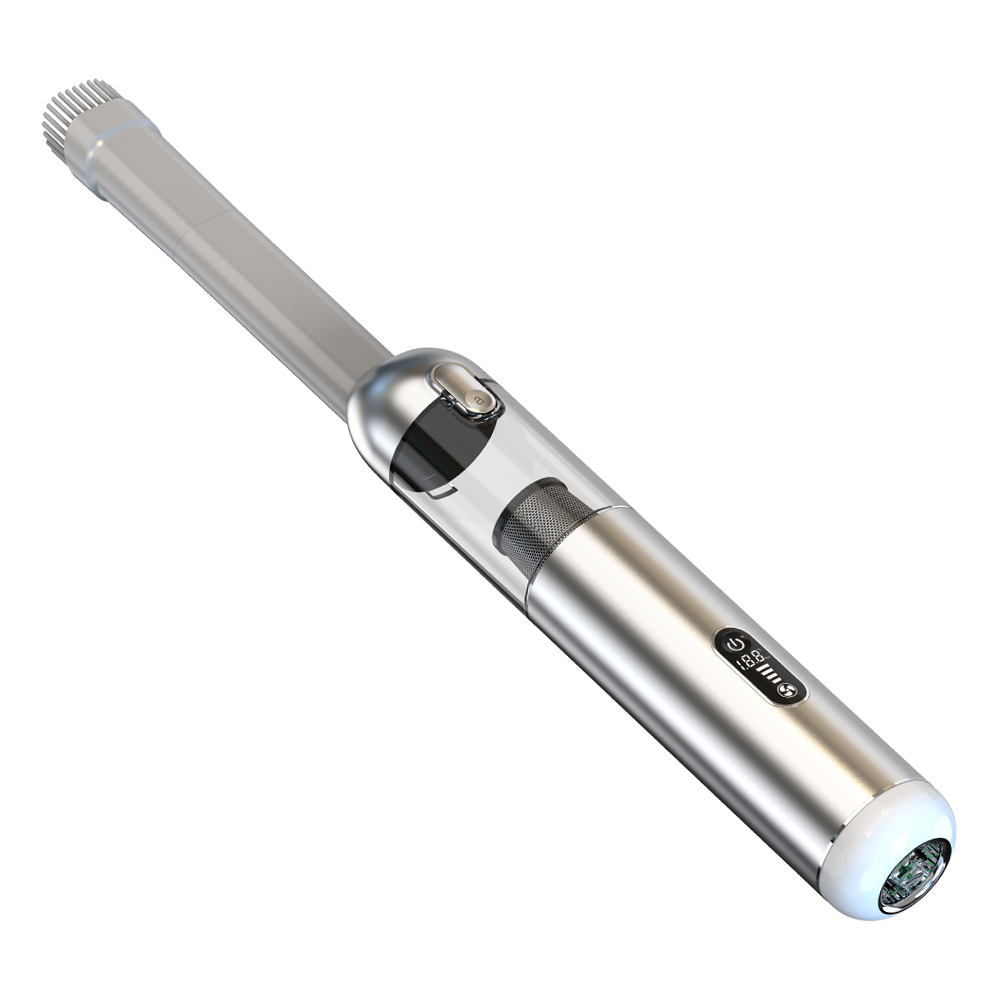

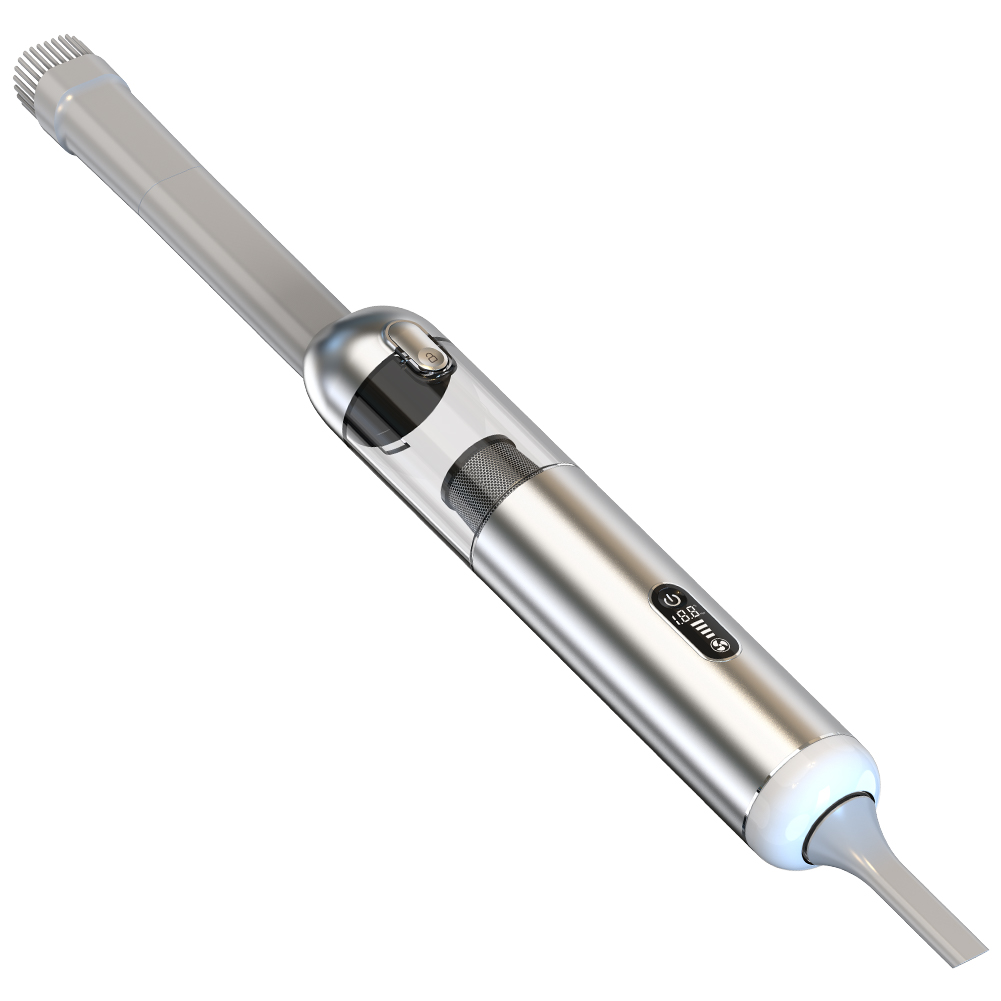

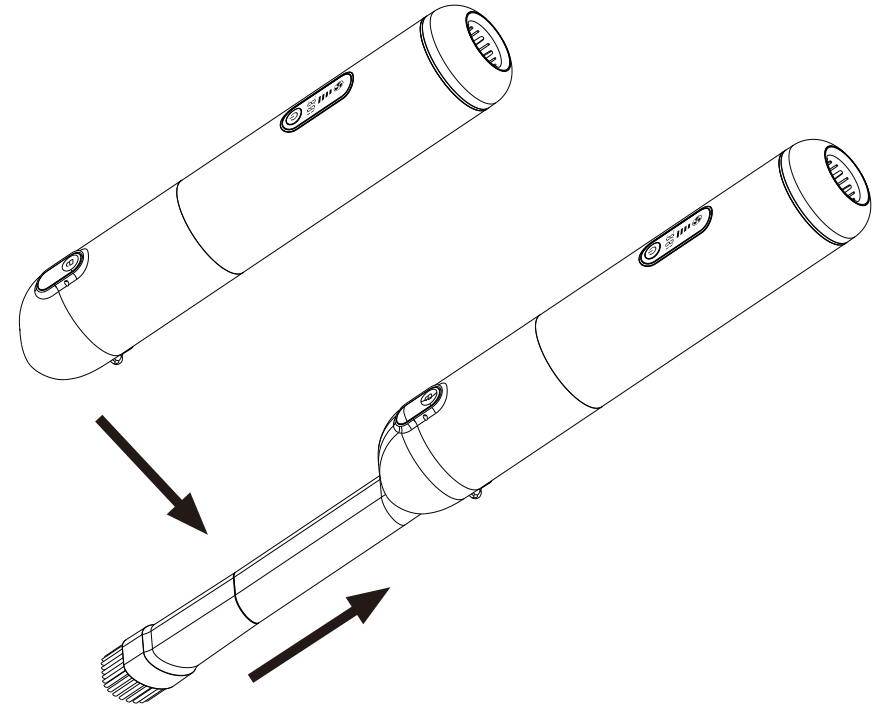

 Installation diagram of long vacuum nozzle

Installation diagram of dust blowing nozzle

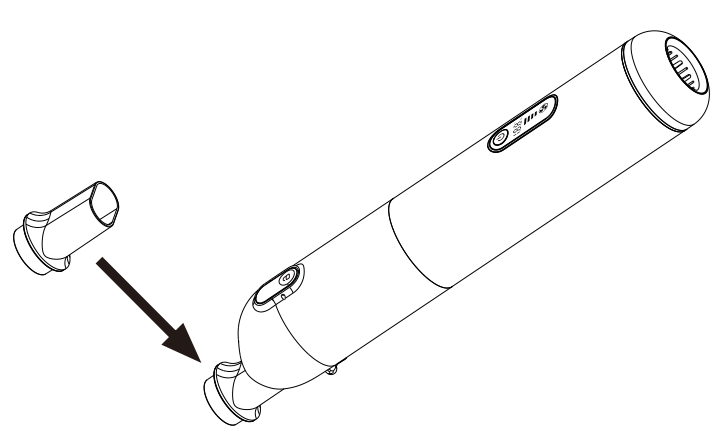

Installation diagram of vacuuming nozzle

IV. Product charging:

* When the product is used for a long time and the battery display at 10% and flash, the product needs to be charged before it can continue to be used.

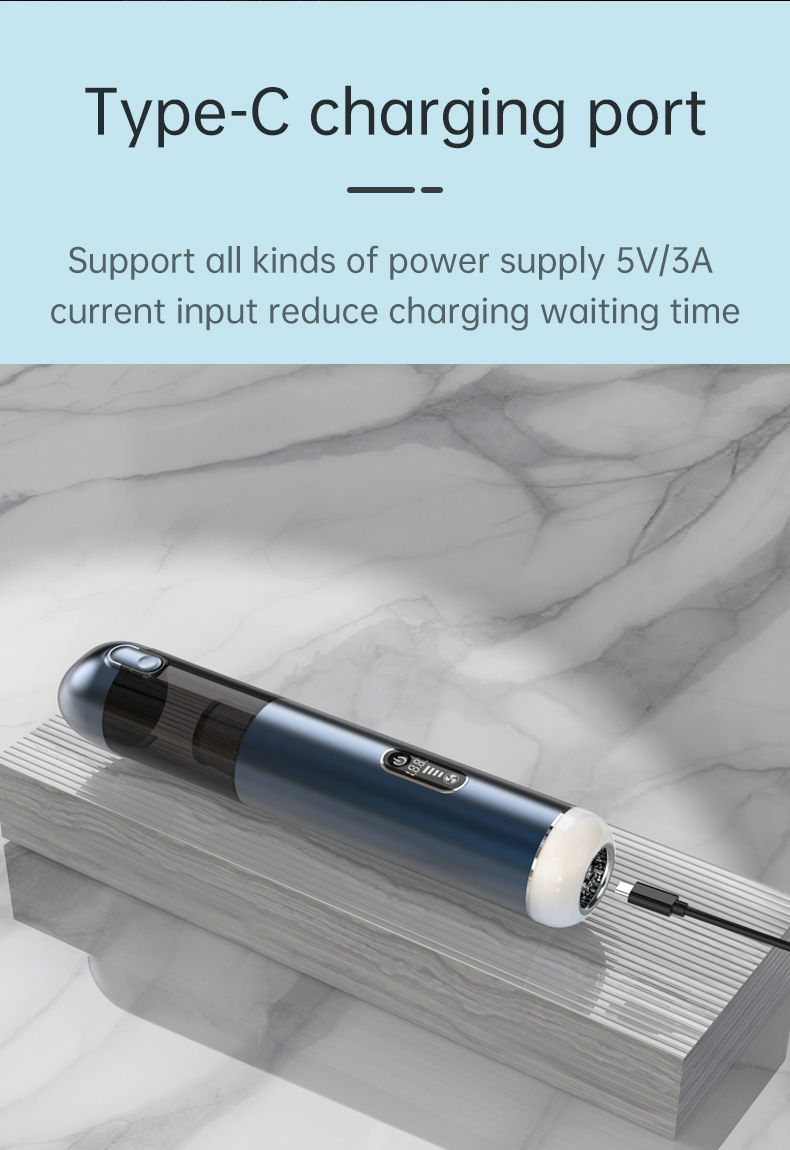

* using the standard TYPE-C plug, it is recommended to select the adapter whose output power is more than 18W to charge the product, if select the low-power adapter and car charger to charge the product, which will cause the problems of long charging time and unstable charging.

* When using the fast charging adapter to charge, TYPE-C connecting wire in the attachment should be correctly inserted into the TYPE-C seat at the rear of the product. When charging, the digital tube will display the power percentage, and when it is fully charged, it will display 100% of the power, and the four grids will always be on .

* after the vacuum cleaner works, the internal battery temperature exceeds the set temperature, and the charging will display an error, after the product is turned off, it can be placed for about 10 minutes to lower the temperature of the machine before it can be charged.

* This product is specially designed and applicable to standard chargers and TYPE-C wires, so no charger is attached!Reduce and simplify the number of personal Chargers!

V. Trouble and shooting:

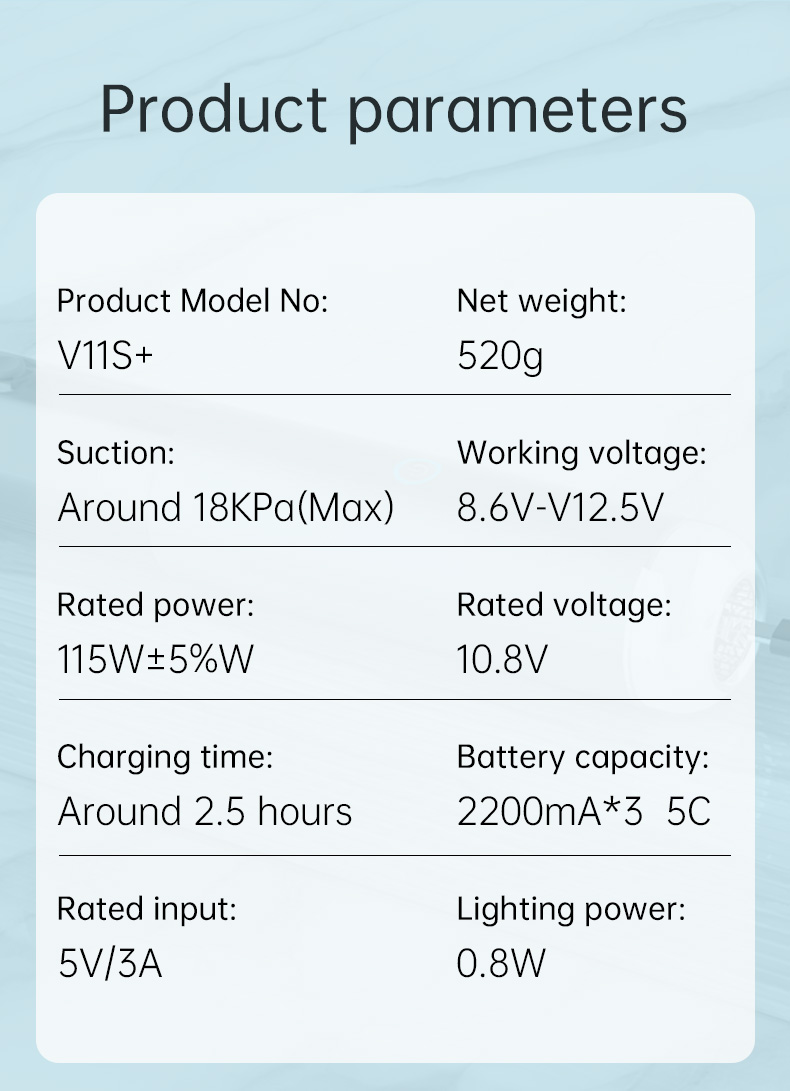

VI. Technical Parameter:
